Dimensions bearing:
Min. inside diameter Ø, vertical/horizontal 45/110 mm
Max. outside diameter Ø 600 mm
Max. width 210 mm
Max. weight 150 kg

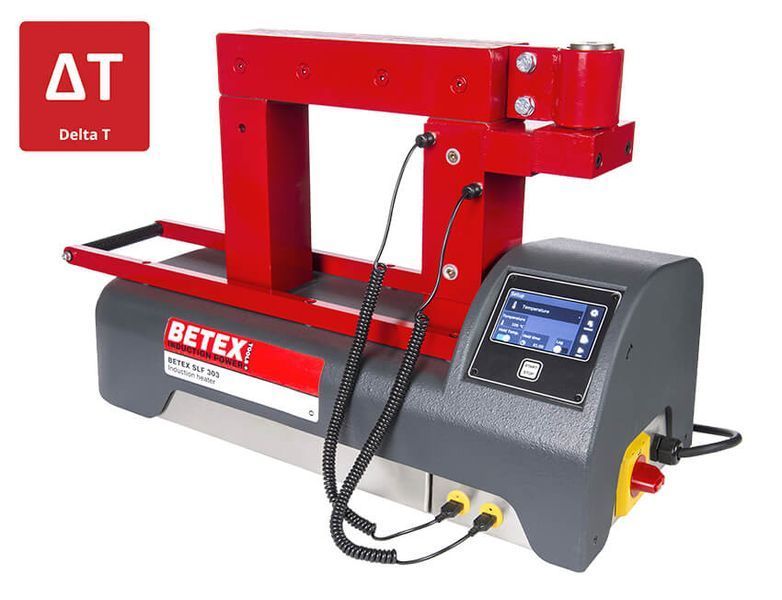

The SMART serie is used when more control over the heating process is needed. These models have a modern easy-to-use touchscreen and 2 temperature probes for dual temperature sensing (Delta T)
- Bench top model, heating capacity till 150 kg
- With swing arm
- Double temperature measurement Delta-T, incl 2 magnetic temperature probes
- Touchscreen with clear graph shows heating process
- Log function to store data or export to a USB-stick
- Create proof of work
- Tension free heating
- Including 2 yokes: 30, 70x80 mm
Temperature setting upto 240°C / 464°F
Automatic demagnetization, better than 2A/cm
Acoustic signal at the end of each heating cycle
Temperature hold
Time setting in minutes/seconds
Heats according to preset temperature/time curve
Log function to store data or export to a USB-stick
Incl. service kit and CE-manual
3 years warranty on the electronic unit
Including packing material
