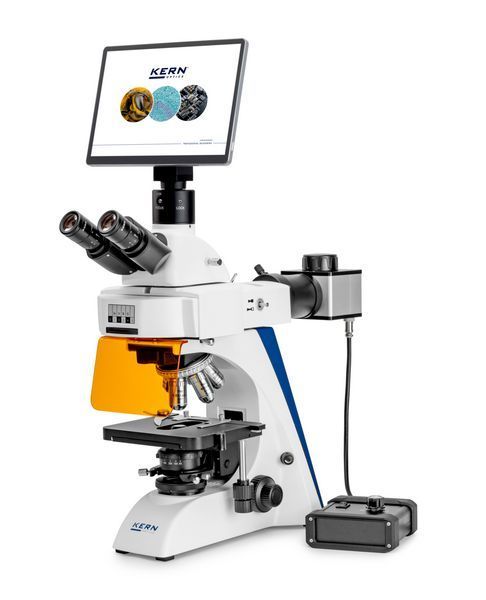

Digital Microscope Set KERN OBN 142T251

Fluorescence digital set: high-resolution image quality for complex analyses

• The KERN OBN 142 fluorescence microscope is now also available as a complete digital solution in a practical set with camera and matching C-mount adapter. It combines high-quality optics with a stable design and 3 W LED transmitted illumination and 5 W LED epifluorescence incident illumination for excellent image quality

OBN 142

• The fluorescence microscope in the OBN series is based on the usual high quality and versatility of the OBN series. The outstanding, stable design in combination with high-quality optics set the standard in fluorescence microscopy in this class
• 3 W LED transmitted illumination unit and 5 W LED Epi fluorescence incident illumination unit
• This series has a professional Koehler illumination unit with an adjustable field diaphragm as well as a height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diaphragm.
• The extremely large mechanical stage with ergonomic, coaxial coarse and fine focusing knob on both sides enables you to adjust and focus your sample rapidly and accurately
• As standard, the filter wheel which has up to 6 fittings is fitted with a B/G/UV/V fluorescence filter

ODC 251

• The KERN ODC 251 microscope tablet camera consists of an Android tablet with a 10.5" HD display in combination with an 8 MP camera. It is intuitive to use and is suitable for all trinocular microscopes with a C-mount adapter
• The KERN tablet cameras have been specially developed for simple, direct monitoring of samples on the screen, whether used in the laboratory, in quality testing or in training and studying
• The integrated high-performance camera has an 8 MP image sensor with a sensor size of 1/1.8" and is able to record videos with a resolution of 4K. In this way, as well a live transfer of the image to the Android table, high-resolution images and videos can also be created for the documentation. Measuring functions, such as, for example, functions for measuring distance and surfaces are also available
• Automatic white balance and automatic contrast adjustment can be performed quickly and easily, which enables efficient working procedures
• A range of additional functions are provided through the integrated interfaces, such as, for example
  - Data storage on a USB stick
  - Connection to a USB mouse
  - Transfer of the live image to an external screen using HDMI
  - Transfer of stored data to a computer via USB data cable

Input voltage power supply / power [Max]: 100 V - 240 V, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO
Plug-in power supply type: USB including power supply
Gross weight: 0,60 kg
Net weight: 0,45 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 120×50×50 mm
Dimensions packaging Width: 120 mm
Dimensions packaging Depth: 50 mm
Dimensions packaging Height: 50 mm
Total packaging weight: 150 g
Packaging component plastic: 150 g
Cable length: 2,5 m
Technical Data Sheet (PDF)
