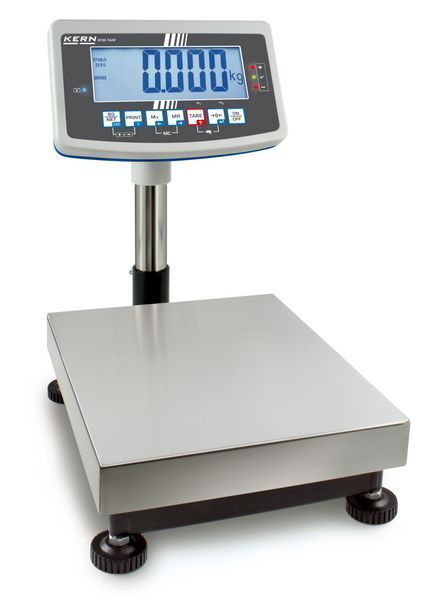

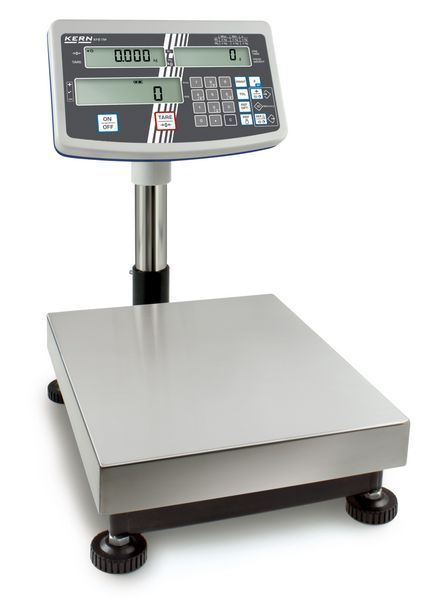

- Height of stand approx. 330 mm
- Suitable for Platform scales KERN IFB and KERN IFS
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for DAkkS calibration: 963-128H
Material housing: plastic
Dimension housing (W×D×H): 90×30×176,5 mm
Dimension housing (Width): 90 mm
Dimension housing (Depth): 30 mm
Dimension housing (Height): 176,5 mm
Dimension completely mounted (W×D×H): 90×30×283 mm
Dimension completely mounted (Width): 90 mm
Dimension completely mounted (Depth): 30 mm
Dimension completely mounted (Height): 283 mm
Display type: LCD
Display digit height: 11 mm
Units: kg; lb; N
Supplied power supply: Battery
Battery / accumulator type: Alkali(-Manganese)
Auto-off interval(s) in battery mode/rechargeable battery mode: 3:30 min
Battery: 9 V block
Battery operating time: 80 h
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 5 °C
Ambient temperature [Max] (°C): 35 °C
Gross weight: 0,65 kg
Net weight: 0,35 kg
UN number (hazardous goods): Drycell (Alkalines, nickel-cadmium, zinc-carbon, Packing instruction #1, Not Restricted as per Special Provision A123)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 225×150×70 mm
Dimensions packaging Width: 225 mm
Dimensions packaging Depth: 150 mm
Dimensions packaging Height: 70 mm
Total packaging weight: 307 g
Packaging component Paper: 18 g
Packaging component carton/cardboard: 697 g
Packaging component plastic: 2 g
Packaging component Styrofoam: 78 g
Packaging component foam: 18 g
Tolerance (% of [Max]): 0,5%
Internal measuring frequency: 5 Hz
Pictograms Standard: External adjustment; Units switchable; Hold function (average value); Prepared for battery operation; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Accessories: CH-A01N; 366-77
