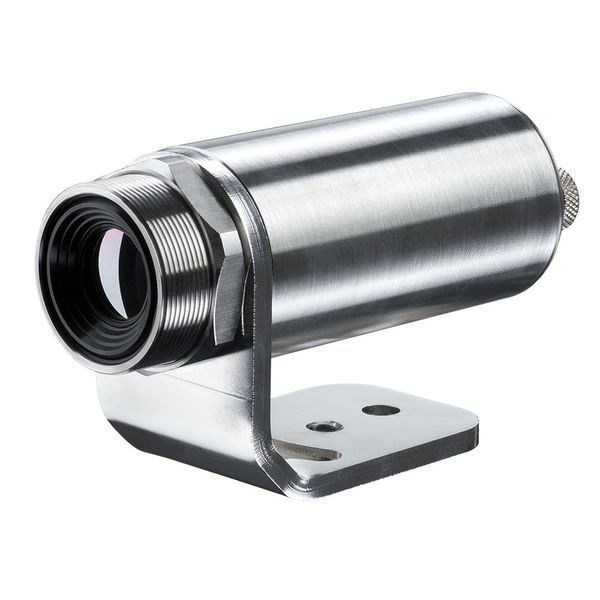

TThe Optris Xi 05M MeltScope, a short-wavelength infrared camera, excels in non-contact thermal imaging of challenging objects. The infrared camera accurately measures the surface temperatures of hot molten metals, steel, or ceramics. With its autonomous thermal measurement capability and motorized focus, it offers reliability and ease in industrial settings, eliminating the need for additional hardware. Featuring Ethernet, USB interfaces, and analog and digital process interfaces, the infrared camera for molten metal enables seamless integration into control systems and machinery.
Non-reflective materials typically exhibit high and stable emissivity across long-wave infrared ranges, regardless of surface texture. In contrast, metallic and reflective materials show low emissivity at long wavelengths, resulting in unreliable temperature readings.
The short-wavelength spectral range of the Optris Xi 05M MeltScope thermal camera matches the peak emissivity of most metals, enabling accurate non-contact temperature measurement. According to Planck’s law, shorter wavelengths emit more infrared radiation, reducing emissivity-related errors and improving repeatability. Therefore, reflective materials at high temperatures should be measured using the shortest feasible wavelength.
The Xi 05M offers autonomous hot-spot detection, ensuring effective monitoring and inspection. Designed and manufactured in Germany, it provides superior accuracy and stability compared to long-wave cameras. The mid-resolution detector (396 × 300 pixels) measures temperatures from 950°C to 2450°C without sub-ranges. Its high distance-to-spot ratio allows precise measurements from afar, while the motorized focus enables remote adjustment.
Built for industrial reliability, the compact and waterproof thermal camera supports fixed or mounted installations. In addition, featuring Ethernet and USB interfaces, it delivers 20 Hz imaging and integrates easily into control systems. Additional features include automatic spot detection, analog output (0/4–20 mA), and fieldbus compatibility (Ethernet/IP, Modbus TCP/IP, RS485, Profinet). Optional accessories such as water cooling and air purges extend its use in harsh environments.
Xi 05M MeltScope - Infrared Camera for Molten Metal - Important Features:
- Industrial Ethernet short-wavelength infrared camera
- Wide measurement range from 950°C to 2450°C without sub-ranges
- Small-sized, ruggedized with motorized focus
- Highly dynamic CMOS detector with 396 x 300 pixels resolution
- Autonomous operation with auto hot spot finder, direct analog or alarm output, and various fieldbus communication options
- Ethernet or USB Interface
| DETECTOR | ||
| Optical resolution | 396x300 pixels | 396x300 pixels |
| Pixel pitch | 15 µm | 15 µm |
| Detector | CMOS | CMOS |
| Spectral Range | 500 - 540 nm | 500 - 540 nm |
| Optical Filter | No | No |
| Frame rate | Full resolution: 20 Hz (Ethernet) **1) Subframe mode: 20 Hz (USB, autonomous) **1) Linescan: 500 Hz (Ethernet, autonomous) **1) | Full resolution: 20 Hz (Ethernet) **1) Subframe mode: 20 Hz (USB, autonomous) **1) Linescan: 500 Hz (Ethernet, autonomous) **1) |
| OPTICAL | ||
| Field of View | 28° x 21° | 14° x 10° |
| Focal length [mm] | 12.0 | 25.0 |
| F Number | 2.0 | 2.8 |
| Distance to Spot Ratio (D:S) | 195:1 | 400:1 |
| Minimum Distance to target | 300 mm | 300 mm |
| Interchangeable optics | No | No |
| MEASUREMENT | ||
| Object Measurement Range | 900 – 2450 °C | 900 – 2450 °C |
| Accuracy | For object temperature < 2000 °C: ±1 % of reading for 20 Hz, 500Hz For object temperature > 2000 °C: ±2 % of reading for 20 Hz, 500Hz | For object temperature < 2000 °C: ±1 % of reading for 20 Hz, 500Hz For object temperature > 2000 °C: ±2 % of reading for 20 Hz, 500Hz |
| Thermal Sensitivity (NETD) | < 2.5 K (< 1800 °C) / 1800 °C) | < 2.5 K (< 1800 °C) / 1800 °C) |
| Smallest detectable Spot Size IFOV: 1 pixel | 0.7 mm | 0.19 mm |
| Smallest measurable Spot Size MFOV | 2.8 mm | 0.8 mm |
| MFOV Measurement Field of View | 4x4 pixels | 4x4 pixels |
| Warm-up time | 10 min | 10 min |
| Emissivity /Transmissivity/ Reflectivity | adjustable: 0.100…1.100 | adjustable: 0.100…1.100 |
| INTERFACES | ||
| Interface | USB 2.0 / Ethernet (100 Mbit/s) / PoE / RS 485 **2) | USB 2.0 / Ethernet (100 Mbit/s) / PoE / RS 485 **2) |
| Supported Protocols | USB, Ethernet (Static), RS485 **2), Serial Communication Optional: EtherNet/IP, Profinet, Modbus TCP, Ethernet TCP | USB, Ethernet (Static), RS485 **2), Serial Communication Optional: EtherNet/IP, Profinet, Modbus TCP, Ethernet TCP |
| Compatible Software | PIX Connect, EasyComm, ConnectSDK, EasyAPI, DirectSDK | PIX Connect, EasyComm, ConnectSDK, EasyAPI, DirectSDK |
| ANALOG INPUT/OUTPUT | ||
| Direct output/input | 1x input (analog or digital) 1x analog output (0/4–20 mA) electrically isolated | 1x input (analog or digital) 1x analog output (0/4–20 mA) electrically isolated |
| Optional Industrial Process interface (PIF) | 3x analog outputs (0/4–20 mA or 0–10 V) 3x alarm outputs (relais, 0–30 V / 400 mA) 3x inputs (analog or digital) 1x fail-safe (LED and relay) stackable up to 3 PIFs, electrically isolated | 3x analog outputs (0/4–20 mA or 0–10 V) 3x alarm outputs (relais, 0–30 V / 400 mA) 3x inputs (analog or digital) 1x fail-safe (LED and relay) stackable up to 3 PIFs, electrically isolated |
| Cable length | Ethernet / RS485: 1 m (standard), 5 m, 10 m, 20 m (extendable up to 100 m) USB: 1 m (standard), 3 m, 5 m | Ethernet / RS485: 1 m (standard), 5 m, 10 m, 20 m (extendable up to 100 m) USB: 1 m (standard), 3 m, 5 m |
| IMAGE PROCESSING | ||
| Configuration | via PIX Connect | via PIX Connect |
| Operation | Autonomous Standalone and/or computer-enabled | Autonomous Standalone and/or computer-enabled |
| Capabilities | Measurement of hot metal surfaces and molten metal, Autonomous temperature evaluation of areas of interest, Linescanner, EventGrabber, Merger, Alarming, Comparison Functions | Measurement of hot metal surfaces and molten metal, Autonomous temperature evaluation of areas of interest, Linescanner, EventGrabber, Merger, Alarming, Comparison Functions |
| GENERAL | ||
| Size | Ø 36 mm x 112-127 mm (depending on lens), thread: M30x1 | Ø 36 mm x 112-127 mm (depending on lens), thread: M30x1 |
| Housing Material | Stainless steel | Stainless steel |
| Weight | 270 g (without mounting bracket) | 270 g (without mounting bracket) |
| Tripod | 1/4-20 UNC | 1/4-20 UNC |
| Focus | Motorized | Motorized |
| Country of Origin | Germany | Germany |
| ENVIRONMENTAL & CERTIFICATIONS | ||
| Operating Temperature Range | 0...50 °C | 0...50 °C |
| Storage Temperature Range | -40...70 °C | -40...70 °C |
| Relative humidity | 10 – 95 %, non-condensing | 10 – 95 %, non-condensing |
| Protection Class | IP67, NEMA-4 | IP67, NEMA-4 |
| EMC | 2014/30/EU | 2014/30/EU |
| Shock | IEC 60068-2-27 (25 G and 50 G) | IEC 60068-2-27 (25 G and 50 G) |
| Vibration | IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise) | IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise) |
| Standards | CE, UKCA, RoHS | CE, UKCA, RoHS |
| POWER | ||
| Power Supply | 8-30 VDC, Power over Ethernet (PoE), USB | 8-30 VDC, Power over Ethernet (PoE), USB |
| Power Consumption | max. 2.5 W | max. 2.5 W |
| Part number | OPTXI05MO28T245 | OPTXI05MO14T245 |
| Additional Remarks | 1) Start-up temperature is increased to 1050°C for 500 Hz mode 2) Direct out- and inputs are not available while using the RS485 interface | 1) Start-up temperature is increased to 1050°C for 500 Hz mode 2) Direct out- and inputs are not available while using the RS485 interface |
