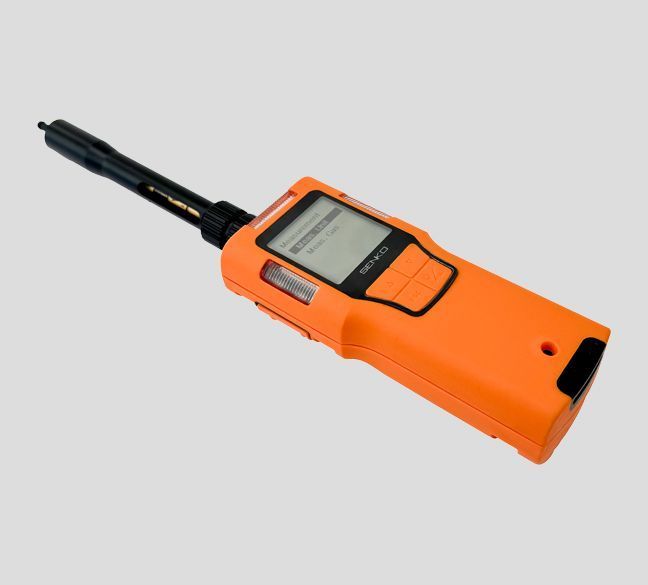

The V-PRO Benzene is a highly specialized, portable multi-gas detector designed to precisely measure Benzene concentrations in hazardous environments. Utilizing a gas tube specifically tailored for Benzene detection, this device offers reliable and accurate measurement, making it ideal for industries requiring strict monitoring of volatile organic compounds (VOCs), particularly Benzene. The V-Pro Benzene is equipped with an integrated pump for efficient gas sampling, especially in confined or hard-to-reach spaces. The device provides real-time data on the LCD screen and alerts users via audible alarms, LED indicators, and vibration when gas concentrations exceed preset safety thresholds. For enhanced functionality, the V-Pro offers wireless settings adjustments and data management via Senko IR-LINK or Short-range wireless communication, ensuring seamless operation and ease of use in various environments.
KEY FEATURES
- Real-time Benzene Detection: Continuously monitors Benzene levels with immediate feedback on the LCD screen.
- Gas Tube for Benzene Detection: Designed for precise Benzene measurement using a dedicated gas tube.
- Easy Benzene Tube Replacement: Tool-free replacement for fast and simple maintenance.
- Built-in Pump: Ensures efficient sampling in confined or difficult-to-access environments.
- Wireless and IR Connectivity: Allows remote settings and data transfer via IR-LINK or wireless communication.
- Durability: IP67-rated for excellent dust and water resistance.
- Extended Battery Life: Up to 60 hours on a single charge.
- High-Performance Alarms: Alerts via LED, buzzer, and vibration for safety assurance.
- Event Logging: Stores up to 30 events including alarms and calibrations.
- User-Friendly Interface: Four-button layout for easy operation.
- Explosion-proof Certification: Safe for use in oil & gas, chemical, and mining environments.
Product Specifications
| Model | V-PRO Benzene |
|---|---|
| Measuring Target | Benzene – Designed for highly accurate and reliable detection in industrial and hazardous environments. |
| Sampling Type | Sampling type – Enables precise detection of Benzene concentrations across various environments. |
| Housing Material | Robust polycarbonate construction with rubberized exterior for enhanced durability and impact resistance. |
| Power Supply | 3.7VDC Lithium-ion rechargeable battery, 4000mAh capacity |
| Battery Life | Up to 60 hours of continuous operation per charge |
| Operating Temperature Range | -20°C to +50°C / -4°F to +122°F |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Pressure Range | 80 KPa to 120 KPa |
| Event Log | Stores up to the 30 most recent alarm events |
| Ingress Protection | IP67 – Dustproof and waterproof (up to 1 meter for 30 minutes) |
| Alarm Mechanisms | Visual: LCD display and flashing LED indicators Audible: High-decibel buzzer Vibration: Vibratory alert for noisy environments |
| Display | High-resolution LCD showing Benzene concentration, alarms, and diagnostics |
| Control Interface | Four operational and programming keys |
| Calibration | Zero Calibration: Activated carbon filter Span Calibration: Standard calibration gas |
| Data Logging | Stores logs for data, events, calibration, and bump tests Downloadable via SENKO IR LINK or short-range wireless communication |
| Components | Hard case, V-Pro Benzene unit (Benzene probe & Gas tube), adapter, syringe filter, activated carbon filter, mini driver |
| Warranty | 2-year warranty from the date of purchase (PID sensor excluded) |
| Certifications | IECEx: Ex ia IIC T4 Ga – Certified for use in explosive atmospheres ATEX: II 1 G Ex ia IIC T4 Ga – For safe operation in hazardous gas environments |
Sensor Specifications
| Gas | Measuring Range | Low Alarm | High Alarm | Resolution | Operating Temperature | Lamp Type |
|---|---|---|---|---|---|---|
| Benzene | 0 ~ 100 ppm | - | - | 1 ppb | -20°C to +50°C | 10.6eV PID Lamp |
