- Precise, intuitive to use and digital – with our counting scales you can accelerate your annual stock taking processes and thus save time and money
- Tough industry standard suitable for use in harsh industrial applications

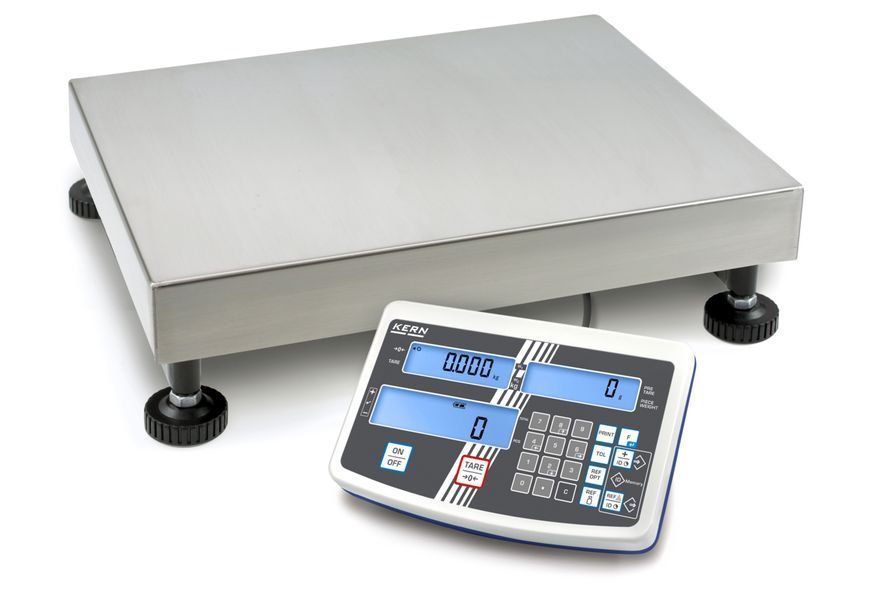

- Ergonomic display device with large keypad and high-contrast LCD display for easy entry and reading of, e.g., tare weights, reference weights, limit values etc.
- Three displays for weight display (verifiable), reference weight, total pieces
- Precise counting: The manual reference weight optimisation gradually improves the average value of the piece weight
- Totalising of pieces when counting
- Printout with date and time
- Protective working cover over the display device included with the delivery
- Plastics technology
- Warehouse logistics
- Dispatch
- Counting applications
- Order picking and inventory
Weighing range (Max): 60 kg; 150 kg
Readability (g): 0,02 kg; 0,05 kg
Verification value [e]: 0,02 kg; 0,05 kg
Accuracy classe: III
Minimum weight (min): 0,4 kg; 1 kg
Reproducibility: 0,02 kg; 0,05 kg
linearity: ± 0,02 kg; 0,05 kg
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for DAkkS calibration: 963-130
Material weighing plate: steel, powder-coated
Dimension weighing platform (W×D×H): 1200×1500×108 mm
Dimension weighing platform (Width): 1200 mm
Dimension weighing platform (Depth): 1500 mm
Dimension weighing platform (Height): 108 mm
Dimensions weighing surface (W×D): 1200×1500 mm
Dimension weighing surface (Width): 1200 mm
Dimension weighing surface (Depth): 1500 mm
Display type: LCD
Display digit height: 25 mm
Units: kg; lb
Supplied power supply: Power supply & battery function (battery not included)
Battery / accumulator type: Alkali(-Manganese)
Battery: 4×1.5 V AA
Battery operating time: 60 h
Input voltage power supply / power [Max]: 100 V - 240 V AC 50/60 Hz 0,3 A
Plug-in power supply / adapter for countries - included with the delivery: EURO,AUS,UK,US,CH
Plug-in power supply / adapter for countries - option: EURO,AUS,UK,US
Plug-in power supply type: Power adapter
Humity of environment [Min]: 0 %
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 170 kg
Net weight: 150 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Freight
Dimensions packaging (W×D×H): 1270×1560×240 mm
Dimensions packaging Width: 1270 mm
Dimensions packaging Depth: 1560 mm
Dimensions packaging Height: 240 mm
Total packaging weight: 17 kg
Packaging component Paper: 1120 g
Packaging component carton/cardboard: 0 g
Packaging component plastic: 9 g
Packaging component Styrofoam: 0 g
Packaging component glass: 0 g
Packaging component wood: 32,8 kg
Packaging component metal: 0 g
Packaging component foam: 0 g
Cable length: 5 m
Load cell connection: 4-wire
Pictograms Standard: External adjustment; Units switchable; Hold function (average value); Load Cell: Protection against dust and water splashes IP67; Platform: Protection against dust and water splashes IP67; Prepared for battery operation; Universal plug-in power supply; Weighing principle Strain gauges; Delivery Truck 2 days
Pictograms Option: Accredited calibration (DKD)
Accessories: BFB-A03; EOC-A04; BIC-A02; BIC-A05; BIC-A07; EOB-A02B; EOB-A04B; EOB-A04BS05; YGR-01; YKA-16
