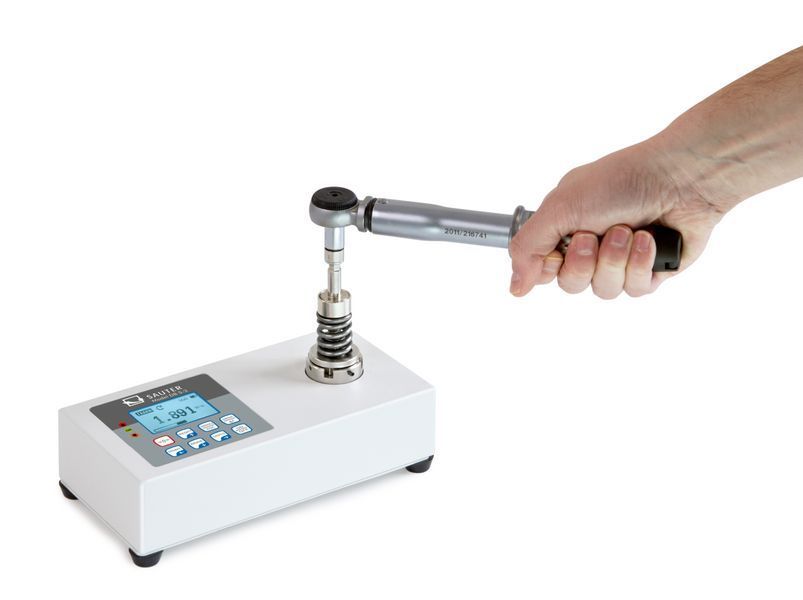

- Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers
- Screw joint simulator for dynamic testing of electric screwdrivers
- Metal housing for durable use in harsh environmental conditions
- Capacity display: A bar lights up to show how much of the measuring range is still available

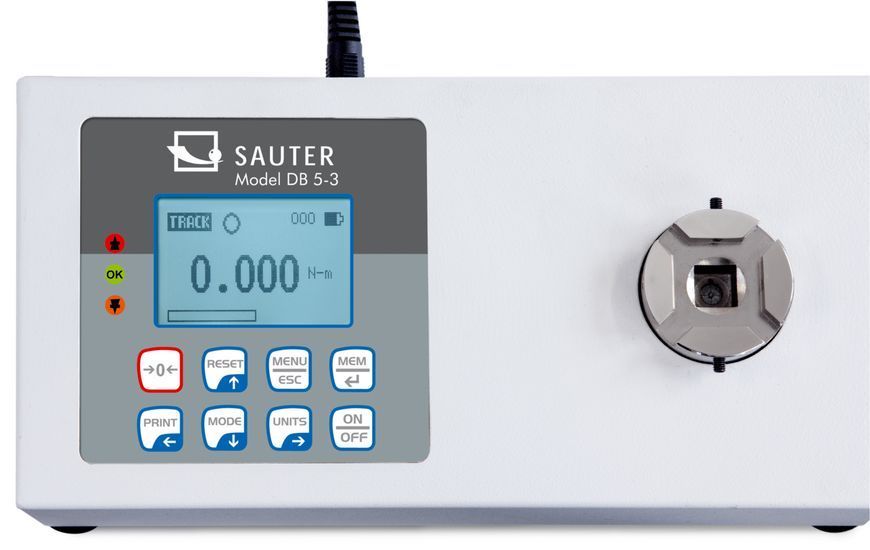

- LCD graphics display with backlight
- Stable mounting plate for solid fixation
- Data interface USB and RS-232 included
- Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software
- Peak-Hold function to capture the peak value or Track function for continuous display of measurement
- Can be used in both directions of rotation
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
- AUTO-OFF function
- Scope of delivery: Torque pick-up, sturdy carry case, mounting plate
- Workshops
- Test laboratories
- Toolmaking and mould and die production
- Maintenance and servicing
Gross weight: 4,6 kg
Net weight: 4,6 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 200×200×315 mm
Dimensions packaging Width: 200 mm
Dimensions packaging Depth: 200 mm
Dimensions packaging Height: 315 mm
Total packaging weight: 0 g
Packaging component plastic: 0 g
Pictograms Standard: Package shipment 1 day
Accessories: 970-102
Technical Data Sheet (PDF)
