Drive-through Scale KERN NIB 600K-2

Compact, robust drive-through scale – particularly mobile thanks to its carrying handle, rollers and lightweight construction

• Drive-through scales enable accurate weighing of goods during a production process, without having to unload them. In this way the weighing process can be perfectly integrated into the workflow and there is no significant loss of time. Ideal for rapid weighing of e.g. wire cage trolleys, shelf trolleys, container trolleys, storage trolleys, sack trucks, transpallets, mobile containers, containers refuse etc.
• Low platform height and integrated access ramps on both sides facilitate access
• Weighing bridge: Steel, powder coated, 4 silicon-coated aluminium load cells with protection against dust and water splashes to IP67

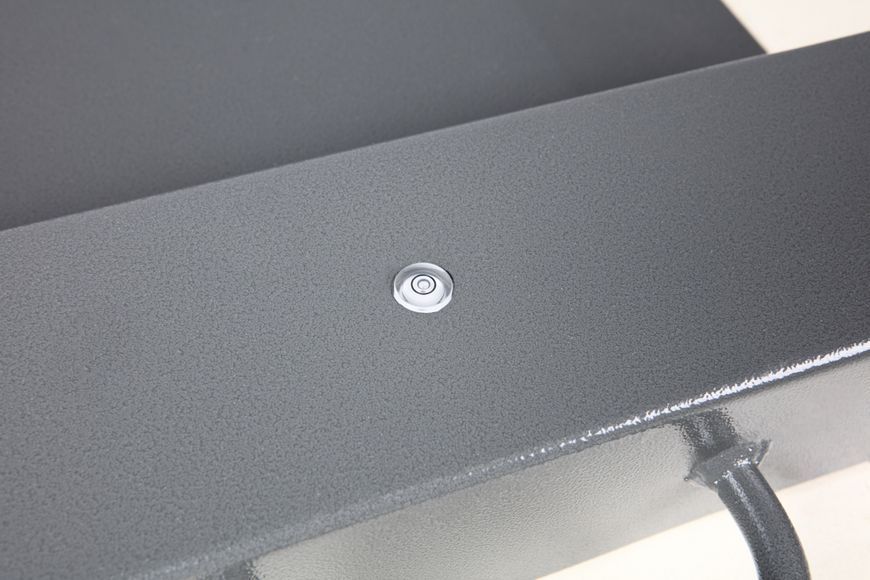

• Level indicator to level the balance precisely

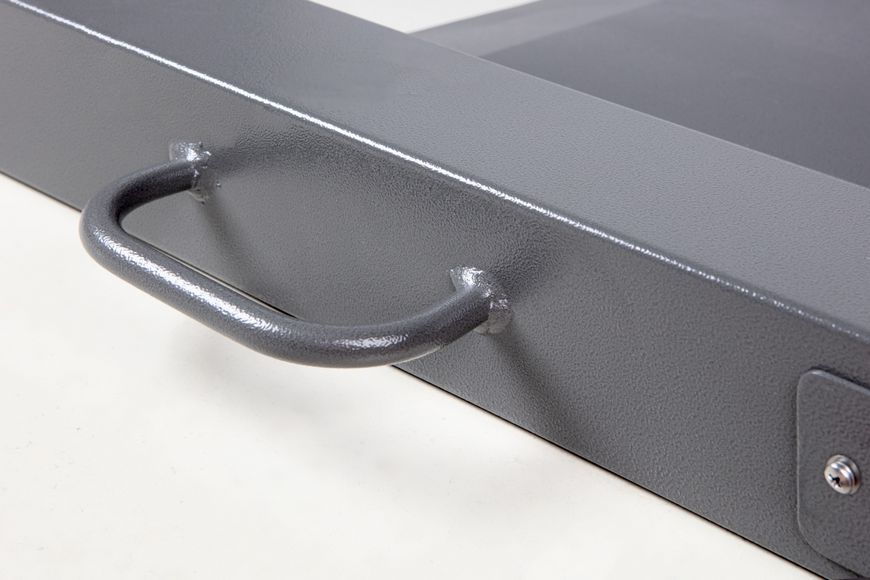

• The scale can be easily transported using rollers and a handle and does not require much storage space
• Wall mount for the display device, as standard, only for models without a stand
• Protective working cover included with delivery

• Warehousing
• Warehouse logistics
• Order picking
• Industrial applications

Weighing range (Max): 600 kg
Readability (g): 0,2 kg
Reproducibility: 0,2 kg
linearity: ± 0,6 kg
Article number for DAkkS calibration: 963-281
Article number for factory calibration: 961-281
Material housing: plastic
Dimension housing (W×D×H): 210×80×40 mm
Dimension housing (Width): 210 mm
Dimension housing (Depth): 80 mm
Dimension housing (Height): 40 mm
Dimension completely mounted (W×D×H): 340×80×40 mm
Dimension completely mounted (Width): 340 mm
Dimension completely mounted (Depth): 80 mm
Dimension completely mounted (Height): 40 mm
Units: dB
Supplied power supply: Power supply & battery function (battery not included)
Battery / accumulator type: Alkali(-Manganese)
Battery: 4×1.5 V AA
Battery operating time: 10 h
Input voltage power supply / power [Max]: 100 V - 240 V, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO
Plug-in power supply / adapter for countries - option: EURO,AUS,UK,US,CH
Plug-in power supply type: Power adapter
Gross weight: 1,4 kg
Net weight: 0,40 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 405×305×100 mm
Dimensions packaging Width: 405 mm
Dimensions packaging Depth: 305 mm
Dimensions packaging Height: 100 mm
Total packaging weight: 917 g
Packaging component carton/cardboard: 200 g
Sound level [Min] (db): 20 dB
Sound level [Max] (db): 134 dB
Readability sound [d] (dB): 0,1 dB
Sound level measuring modes: Lp,Leq,Ln,Lcpeak
Sound level methods of evaluation: A,C,Z,B
Pictograms Standard: Peak hold function; Device-internal Memory; Data interface RS-232; Data Interface USB; Analogue interface; Statistics function; Measuring with tolerance range (checkweighing function); Prepared for battery operation; Plug-in power supply 230V/50 Hz; Package shipment 1 day
Pictograms Option: PC software; Factory calibration (ISO); Accredited calibration (DKD)
Accessories: SW-A05; BSWA-01; YKA-20
