- Industry 4.0 process chains: these weighing platforms can be easily integrated into your process chain. All recorded values can be easily transferred and processed further in your system as digital data and data that has already been compared using the many interfaces available. This saves cost, time and resources and ensures even more effective working
- Connecting the platform with a tablet or PC offers the advantage of being able to use the apps and programs which are on that device. These apps and programs are usually already tailored to your needs, are easy and convenient to use and can often be expanded as needed. This offers you the maximum level of flexibility when displaying, processing and saving the recorded weighing data
- Searching and remote control of the balance using external control devices or computers with the KERN Communication Protocol (KCP). KCP is a standardised interface command structure for KERN balances and other instruments which allows you to recall and manage all relevant parameters and device functions. You can therefore simply connect KERN devices with KCP to computers, industrial control systems and other digital systems. In a large number of cases the KCP is compatible with the MT-SICS protocol
- PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
- A practical status LED informs about the active power supply

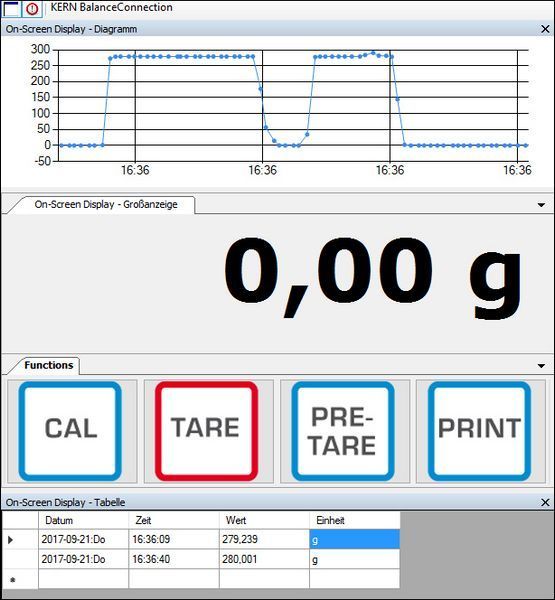

- Software BalanceConnection for adjusting and managing the KERN KDP, for large-format display of the values collected on the PC as well as transfer of this data to other Apps and programs included with the delivery
Weighing range (Max): 3,5 kg
Readability (g): 10 mg
Reproducibility: 20 mg
linearity: ± 50 mg
Article number for DAkkS calibration: 962-405
Weight OIML class: F1
Test weight - nominal value: 1 mg - 1 kg
Article number plastic case plastic: 313-082-400
Case of weight set: in plastic case
Gross weight: 3,8 kg
Net weight: 3,8 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 350×320×180 mm
Dimensions packaging Width: 350 mm
Dimensions packaging Depth: 320 mm
Dimensions packaging Height: 180 mm
Total packaging weight: 0 g
Packaging component plastic: 0 g
Pictograms Standard: Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Accessories: 313-082-400
Technical Data Sheet (PDF)
