- Tough industry standard suitable for use in harsh industrial applications
- Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection and interface protocol
- Industry 4.0: The exchange of data and control commands is optional using up to four interfaces to suit individual requirements: two wired connections (RS-232, Ethernet, USB or analogue module) and two wireless connections (WiFi, Bluetooth)
- Each interface can be set up separately, e.g.:
- Interface 1 (WiFi): Continuous sending to a PC for documentation of a process
- Interface 2 (RS-232): Print stable weight
- Interface 3 (analogue module): Controlling a device when the target weight is reached
- Interface 4 (Bluetooth): Continuous sending to a tablet to monitor a process - Available as an option with alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further
- Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol

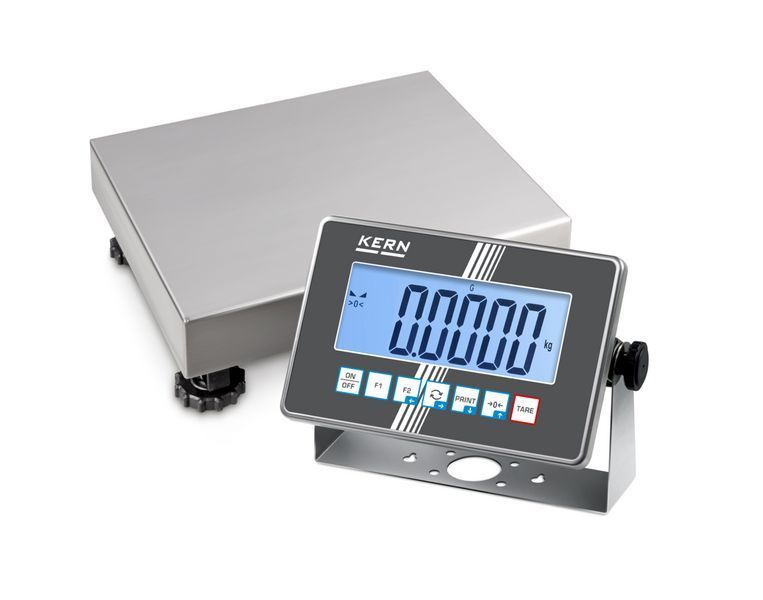

- Platform: weighing plate of stainless steel, painted steel base, silicone-coated aluminium load cell with protection against dust and water splashes IP65
- Display device: stainless steel, protection against dust and water splashesIP68. Superior display size: digit height 48 mm, bright backlight for easy reading of weighing results, even in poor lighting conditions, integrated power supply
- Process monitoring
- Testing applications
- Production and manufacturing
- Warehouse logistics
Weighing range (Max): 6 kg
Readability (g): 0,0002 kg
Reproducibility: 0,0002 kg
linearity: ± 0,0006 kg
Input voltage power supply / power [Max]: 100 V - 240 V
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,CH
Plug-in power supply type: Power adapter
Gross weight: 0,15 kg
Net weight: 0,15 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 93×70×40 mm
Dimensions packaging Width: 93 mm
Dimensions packaging Depth: 70 mm
Dimensions packaging Height: 40 mm
Total packaging weight: 17,95 g
Packaging component carton/cardboard: 17,95 g
Pictograms Standard: Package shipment 1 day
