CEMB Laser Alignment for Shaft the ideal solutions to align industrial machinery and rotating shaft.
AL30 Laser Alignment for Shaft
Your solution for improve thee machine efficiency
- EASY TO USE
- DOUBLE LASER
- WIRELESS
CEMB shaft alignment tools are the ideal solutions to align industrial machinery and rotating shaft.
Compact and rugged, Large color graphic display, Ergonomic, CEMB laser shaft alignment instrument isintuitive and fast, perfect for horizontal machinery.
The 2 moving heads are both receivers and transmitters, allowing precise alignment up to 9 meter distance between the heads.

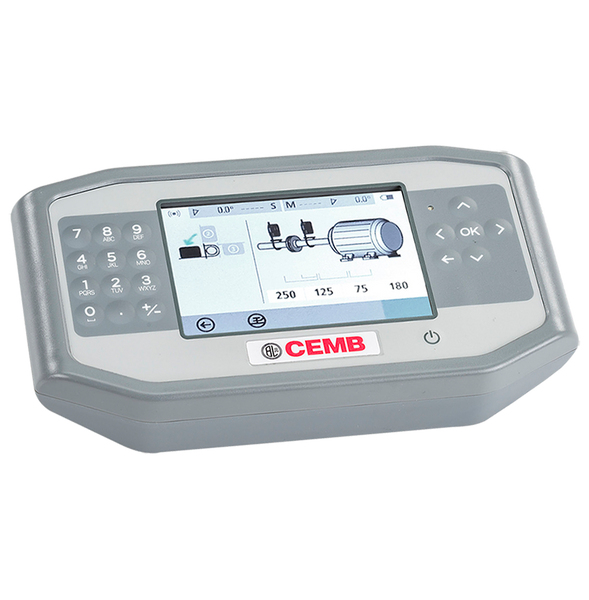

- AL30 CONSOLE
-
Adaptive and icon based user interface
Colour screen
High measure repeatability
Integrated wireless units - LASER HEAD SENSORS
-
No.2 Laser sensors – LHS – LHM
The laser sensors allowing quick and easy set up and adjustment.
They communicate wireless with AL30 unit,
semplifying adjustment operations when working around machineCONSOLE Weight 328 g Dimensions 184 x 100 x 33 mm Environmental protection IP54 Flash storage memory 500 Mb Display 4’’diagonal Colour TFT-LCD backlit Power supply Rechargeable Li-Ion battery or external power supply Operating time 8 hours continuous use LASER HEAD SENSORS Weight 222 g Dimensions 94 x 87 x 37 mm Environmental protection IP54 Laser 650 nm class II diode laser Detector Digital line sensor Power supply Li-Ion battery or external power Operating time 12 hours continuous use (measuring)
