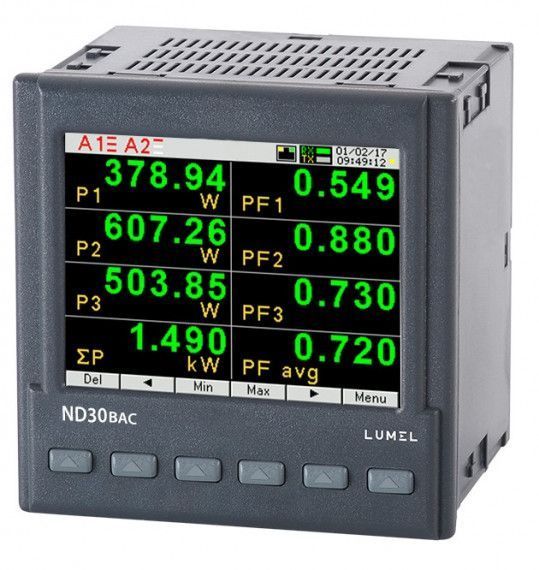

Lumel 1 and 3-phase power network meter with BACnet for BMS applications ND30BAC

Galima užsisakyti
Item: ND30BAC
€533/exl. VAT
Log in to the site to
add the item to your wish list
%
Login to display the cumulative discount
Teirautis kainos
Log in to the site to
add the item to the waiting list
Description

Measurement of 54 parameters, harmonics up to 51st, graphical screen-fully configurable by a user and Profinet interface - these are just some advantages of our new power network meter ND30BAC type.

  • Measurement of 54 power network parameters, including current and voltage harmonics up to 51st, in 1-phase 2-wire or 3-phase 3 or 4-wire balanced and unbalanced systems.
  • Graphical color display: LCD TFT 3,5’’, 320 x 240 pixels, fully configurable by a user (10 vies, 8 parameters in each).
  • Indications include the values of programmed ratios.
  • Memory of minimum and maximum values.
  • 2 configurable alarm outputs.
  • Digital output RS-485 - MODBUs protocol.
  • Modern and user-friendly BACnet/ IP protocole.
  • Programming of parameters using free Ccon software.
  • Battery backup RTC
  • Overall dimensions: 96 x 96 x 77 mm.
