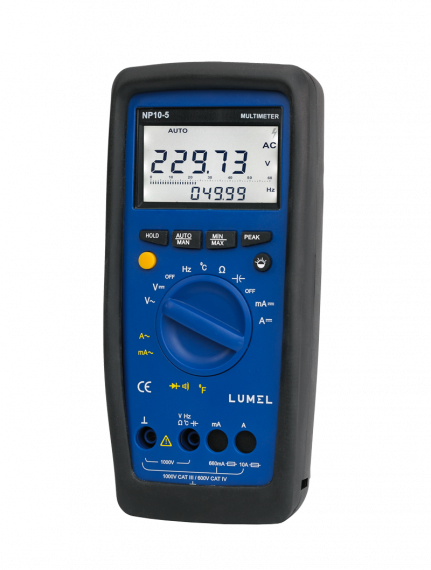

Lumel Digital multimeter NP10

Digital multimeter NP10 type is widely used in the electrical, electronics industry, service works, and as a training - learning tool.

The multimeter allows for measurement of AC/DC voltage, resistance, capacitance and frequency, and also duty cycle, peak values and temperature. Aesthetically constructed dual backlit LED display ensures easy reading of the measured parameters.

• Capacitance from 1pF...40.00 mF with zero correction,
• Direct and alternating voltages from 100μV ... 1000 V,
• Direct and alternating currents from 10μA ... 10 A,
• Resistance from 100 mΩ... 60.00MΩ,
• Frequencies from 10.00 Hz ... 10MHz,
• Diode measurement and continuity testing,
• Hold measurement- the value can be held and display simultaneously,
• Relative measurement by pressing and holding PEAK and then pressing AUTO/MAN key,
• Duty cycle (%) measurement,
• Temperature measurement with ‘K’ type Thermocouple (NiCr – Ni) in the range from 0°C to 1300°C acc. to EN 60584,
• Peak value measurement.
