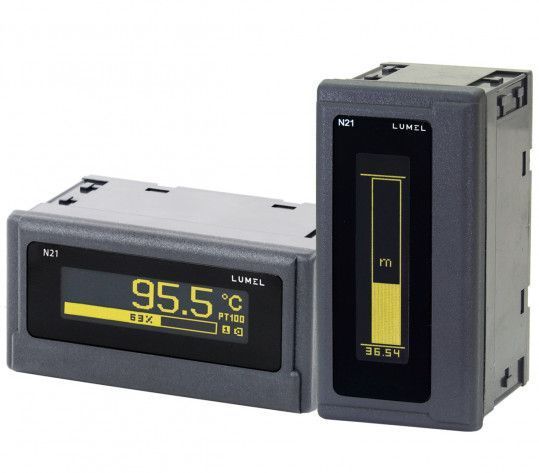

N21 is an ideal soluttion for visualization of industrial processes. Universal input, universal supply and universal OLED display allow to apply meter in many applications.
- Universal measuring input (for standard signals and cooperation with temperature sensors).
- Relay alarm output.
- Universal supply voltage from 24 V up to 230 V ac / dc
- Supply of object transducers 24 V dc
- Universal OLED display (horizontal or vertical, user-programmable by using the appropriate firmware).
- Meter configuration through miniUSB connector with eCon software.
- Programmable parameters in eCon software:
- selection of measured value,
- rescaling of indications (individual characteristic),
- accuracy of measured value (decimal point),
- alarm output mode,
- measurement averaging time,
- firmware update (horizontal or vertical version),
- defining your own unit,
- language selection.
- Protection grade: IP65
- External dimensions: 48 x 96 x 64mm.
