VNA-0460
- 2-port VNA
- Frequency range 400MHz to 6GHz
- Measuring power -30 to +5dBm
- Real time sweep speed
- Port calibrated
- Parametric sweeps
- Match Circuit Calculator
- TDR and Time Gate functions
The VNA-0460 is a full bi-directional 2-port Vector Network Analyzer that is controlled from a PC through a USB connection.
The included software provides full control over the measurements, settings, data storage and reporting.
This VNA is ideal for measuring all kinds of micro-circuits like antennas, attenuators, amplifiers etc. Its frequency range includes most popular telecom bands like GSM-GPRS-LTE, Wifi, DECT, GPS, ISM, Zigbee, Bluetooth.
The VNA Software has an integrated Match Circuit Calculator that Calculates a match circuit from the measurement and simulates this circuit in real time.
Also included are Time Domain Reflection (TDR) functions to analyze impedance over time (distance).
With its small size it can also be used near the antenna inside a large device or installation. It's also ideal for on-site measurements.

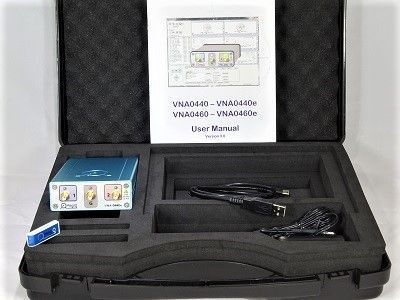

Included in the product are:
- VNA-0460
- PC-software, for controlling, saving data &set-ups, analysis, reporting, etc.
- Power supply and USB Cable
- Documentation
- Carrying case
