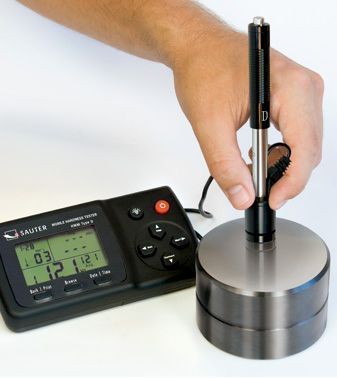

- Impact (rebound) sensor: The bounce module is accelerated by a spring against the item being tested. Depending on how hard the object is, the kinetic energy of the module will be absorbed. The speed reduction will be measured and converted to Leeb hardness values
- External impact sensor (Type D) included
- Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HMM offers the highest level of mobility and flexibility
- All measurement directions possible (360°) thanks to an automatic compensation function
- Hardness test block for calibration included (790 ± 40 HL)
- Internal memory for up to 9 measurement values
- Mini statistics function: displays the measured result, the average value, the impact direction, date and time
- Measurement value display: (B and C), Vickers (HV), Brinell (HB), Shore (HSD), Leeb (HL), tensile strength (MPa)
- Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
- Infrared printer for direct output of the measuring results is included with delivery

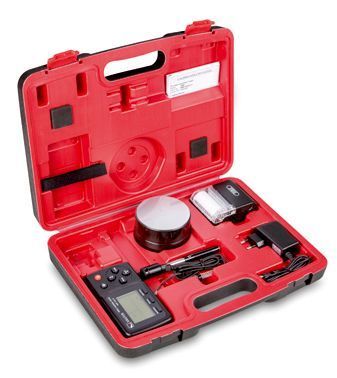

- Delivered in a robust carrying case
- Automotive industry
- Metal processing and steel construction
- Energy and power plant industry
- Oil and gas industry
- Aerospace engineering
Weighing system: Strain gauge
Stabilization time: 3 s
Article number for DAkkS calibration: 963-127
Material housing: plastic
Dimension housing (W×D×H): 170×245×39 mm
Dimension housing (Width): 170 mm
Dimension housing (Depth): 245 mm
Dimension housing (Height): 39 mm
Material weighing plate: plastic
Dimension weighing surface (Ø): 150 mm
Display type: LCD
Display digit height: 15 mm
Units: g; dwt; ozt; oz
Supplied power supply: Battery
Battery / accumulator type: Alkali(-Manganese)
Rechargeable battery optional: Rchrg. battery optional
Rechargeable battery charging time: 10 h
Rechargeable battery operating time - backlight off: 50 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min
Battery: 9 V block
Battery operating time: 16 h
Plug-in power supply / adapter for countries - option: EURO,UK,US,CH
Plug-in power supply type: Power adapter
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 5 °C
Ambient temperature [Max] (°C): 35 °C
Gross weight: 0,70 kg
Net weight: 0,55 kg
UN number (hazardous goods): Drycell (Alkalines, nickel-cadmium, zinc-carbon, Packing instruction #1, Not Restricted as per Special Provision A123)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 204×267×70 mm
Dimensions packaging Width: 204 mm
Dimensions packaging Depth: 267 mm
Dimensions packaging Height: 70 mm
Total packaging weight: 170 g
Packaging component Paper: 5 g
Packaging component carton/cardboard: 720 g
Packaging component plastic: 5 g
Packaging component Styrofoam: 98 g
Packaging component foam: 23 g
Pictograms Standard: External adjustment; Units switchable; Suspended weighing; Prepared for battery operation; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Rechargeable battery; Universal plug-in power supply; Accredited calibration (DKD)
Accessories: 347-11; KS-A01; 315-411-406; YKA-03N; 440-902; 470-902-003
