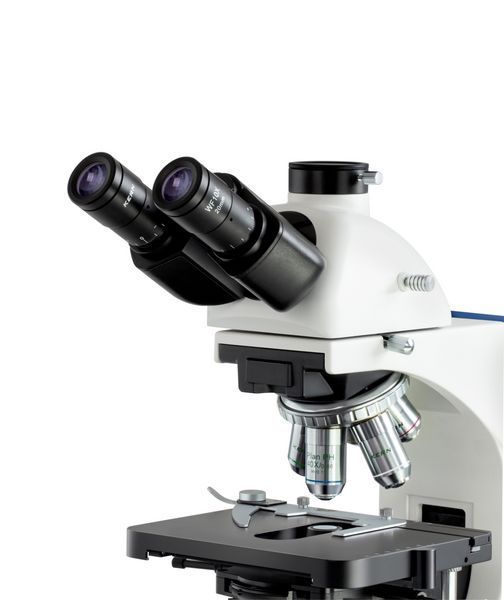

Phase Contrast Microscope KERN OBN 159

Professionalism and versatility united in one microscope – with Koehler illumination for demanding applications

• The OBN- series stands out because of its unbeatable and consistently high quality and its ergonomic design. The range of modular components means that the OBN series can be individually customised for the professional user.
• Strong and continuously dimmable 3W-LED illumination
• Pre-configured phase contrast microscope, which, through the combination of a professional quintuple condenser wheel, phase contrast condenser and Infinity Plan phase contrast objectives makes it a high-quality, fully-equipped microscope for all applications related to this contrasting method

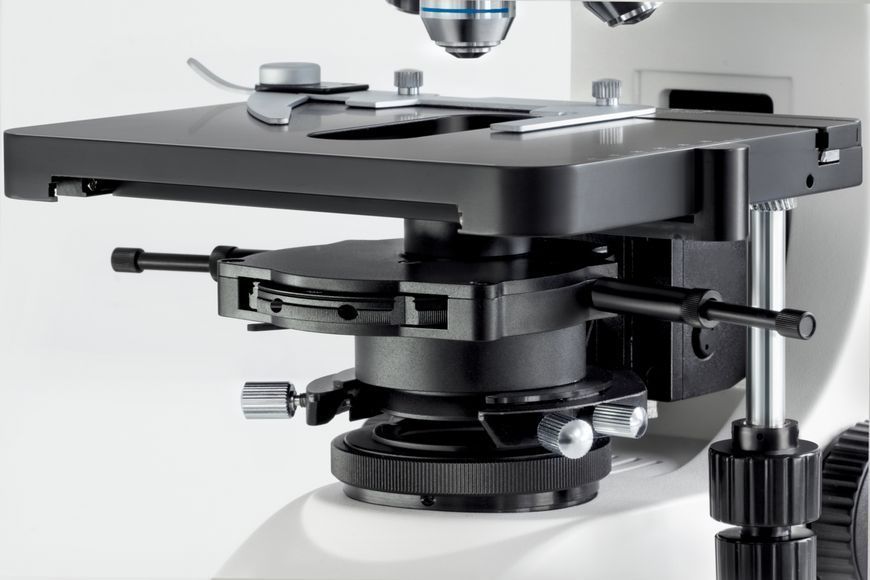

• This series has a professional Koehler illumination unit with an adjustable field diaphragm as well as a height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diaphragm.
• The extremely large mechanical stage with ergonomic, coaxial coarse and fine focusing knob on both sides enables you to adjust and focus your sample rapidly and accurately
• A wide variety of modular systems, such as, for example, a swing-out condenser, various eyepieces, objectives, colour filters, phase contrast units, a darkfield condenser, a simple polarising unit, a Butterfly Tube, through to complete fluorescence units are available to you as accessories
• This centring eyepiece for adjusting the phase contrast, a protective dust cover, eye cups as well as multi-lingual user instructions are included in the scope of delivery

• haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, sewage treatment plants, oncology, entomology, veterinary practices, water analysis, breweries, Inpatient facilities, Laboratory medical facilities, Health authorities, Training centres, Universities

Supplied power supply: Power supply unit
Plug-in power supply / adapter for countries - option: EURO,UK
Gross weight: 4,2 kg
Net weight: 3,0 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 385×370×330 mm
Dimensions packaging Width: 385 mm
Dimensions packaging Depth: 370 mm
Dimensions packaging Height: 330 mm
Total packaging weight: 1236,4 g
Packaging component Paper: 0 g
Packaging component carton/cardboard: 780,168 g
Packaging component plastic: 14,8368 g
Packaging component Styrofoam: 441,395 g
Packaging component foam: 0 g
Illuminance: Reflected light,Transmitted light
Illumination type incident light: LED
Illumination intensity incident light: 3 W
Illumination type transmitted light: LED
Illumination intensity transmitted light: 3 W
Stand type: pillar form
Pictograms Standard: Package shipment 1 day
Accessories: 970-102
