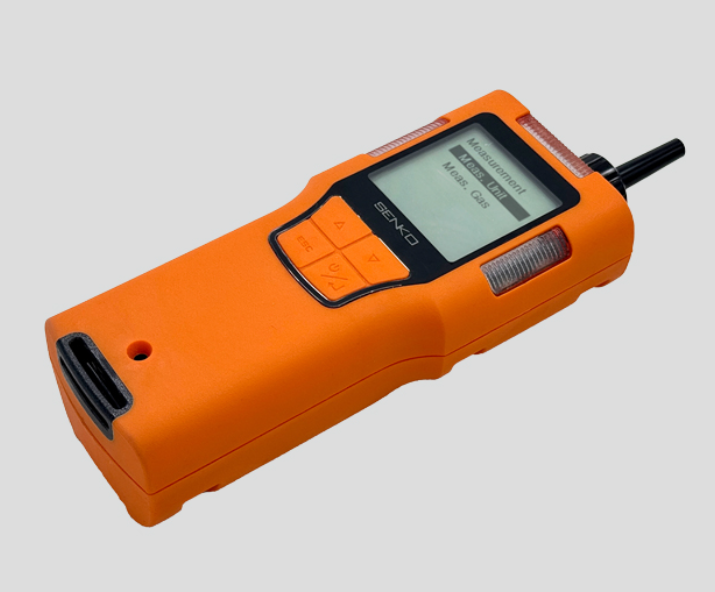

The V-PRO is a compact and portable multi-gas detector specifically designed to alert users to hazardous environments associated with volatile organic compounds (VOCs) and other gases. Featuring an integrated pump, it efficiently samples gases, making it ideal for use in confined spaces and hard-to-reach areas. The V-Pro provides real-time VOC concentration readings on its LCD screen, and when gas levels exceed safety thresholds, it alerts users through audible alarms, LED indicators, and vibration. Easy to operate, it offers wireless setting modifications and data management via Senko IR-LINK or short-range wireless communication.
KEY FEATURES
- Real-time VOC Detection: Continuously monitors VOC levels and provides immediate visual feedback on the LCD screen, ensuring fast hazard response and quick action.
- Built-in Pump: Features an internal pump for efficient gas sampling, perfect for confined spaces and hard-to-reach areas.
- PC-Based Configuration & Data Management (IR LINK): Device configuration and measured data download via IR LINK.
- Wireless Mobile Configuration & Data Management (GTG Device Manager): Device configuration and data download via wireless communication using the SENKO GTG Device Manager mobile app.
- Durability and Protection: Built with an IP67-rated case, the V pro offers exceptional water and dust resistance, ensuring reliable performance in tough, industrial environments.
- Extended Battery Life: Provides up to 60 hours of continuous operation on a single charge, making it ideal for long shifts and remote, high-demand operations.
- High-Performance Alarms: Equipped with visible, audible, and vibrating alarms, ensuring immediate notifications of hazardous situations and enhancing worker safety.
- Event Logging: Automatically logs up to 30 alarm events, allowing for easy tracking and record-keeping for safety audits and operational transparency.
- User-Friendly Interface: Simple four-button operation allows for easy access to gas concentration data and settings, making it intuitive to use for both experienced and new users.
- Explosion-proof Certification: Explosion-proof certified, ensuring safe operation in hazardous environments where the risk of gas explosions exists. Ideal for oil & gas, chemical, and mining industries.
Product Specifications
| Model | V-PRO |
|---|---|
| Measuring Target | VOCs (Volatile Organic Compounds) – Specifically designed for detecting a wide range of VOC gases in industrial and hazardous environments. |
| Sampling Type | Diffusion sampling, ensuring accurate and reliable detection of VOCs in various environments. |
| Housing Material | Robust polycarbonate construction with a rubberized exterior for enhanced impact resistance and durability in industrial environments. |
| Dimensions | 70(W) x 215(H) x 43(D) mm / 2.76(W) x 8.46(H) x 1.69(D) inch |
| Weight | 360g / 12.70 oz |
| Power Supply | 3.7VDC Lithium-ion rechargeable battery (4000mAh) |
| Battery Life | Up to 60 hours of continuous operation on a single charge under typical usage conditions |
| Operating Temperature Range | -20°C to +50°C / -4°F to +122°F |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Pressure Range | 80 KPa to 120 KPa |
| Event Log | Stores up to 30 most recent alarm events |
| Ingress Protection | IP67 – Fully dustproof and waterproof (up to 1 meter for 30 minutes) |
| Alarm Mechanisms | Visual: LCD display with gas readings and flashing LED indicators Audible: High-decibel buzzer Vibration: Integrated vibration alert |
| Display | High-resolution LCD with real-time gas concentration, alarms, and diagnostics |
| Control Interface | Four operational and programming keys for easy navigation and setup |
| Calibration | Zero Calibration: Using activated carbon filter Span Calibration: Using standard calibration gas |
| Data Logging | Stores logs for data, events, calibration, and bump tests Downloadable via SENKO IR LINK or short-range wireless communication |
| Components | Hard Case, V Pro, Adaptor, Syringe filter, Activated carbon filter, Mini driver |
| Warranty | 2-year warranty from the date of purchase (PID sensor excluded) |
Sensor Specifications
| Gas | Measuring Range | Low Alarm | High Alarm | Resolution | Operating Temperature | Lamp Type |
|---|---|---|---|---|---|---|
| VOCs | 0 ~ 4,000 ppm | 50 ppm | 100 ppm | 0.1 ppm | -20°C to +50°C | 10.6eV PID Lamp |
| VOCs | 0 ~ 40 ppm | 10 ppm | 25 ppm | 1 ppb | -20°C to +50°C | 10.6eV PID Lamp |
