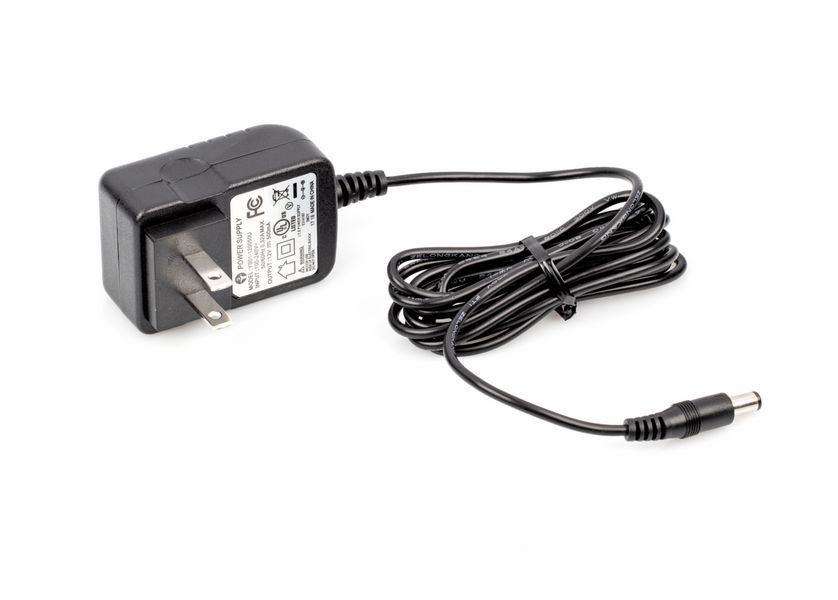

Power adapter (US)
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for DAkkS calibration: 963-129
Material weighing plate: stainless steel
Dimension weighing platform (W×D×H): 500×400×131 mm
Dimension weighing platform (Width): 500 mm
Dimension weighing platform (Depth): 400 mm
Dimension weighing platform (Height): 131 mm
Dimensions weighing surface (W×D): 500×400 mm
Dimension weighing surface (Width): 500 mm
Dimension weighing surface (Depth): 400 mm
Display type: LCD
Display digit height: 55 mm
Units: kg
Supplied power supply: Power supply unit
Battery / accumulator type: Pb
Rechargeable battery optional: Rchrg. battery optional (factory)
Rechargeable battery charging time: 12 h
Rechargeable battery operating time - backlight on: 40 h
Rechargeable battery operating time - backlight off: 80 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 1 - 9 min
Input voltage power supply / power [Max]: 220 V - 240 V AC, 50 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO
Plug-in power supply / adapter for countries - option: UK,CH
Plug-in power supply type: Built-in power supply
Interfaces: RS-232 (optional, factory),Bluetooth (optional, factory),RS-485 (optional, factory)
Humity of environment [Min]: 0 %
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 24 kg
Net weight: 22 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 500×770×230 mm
Dimensions packaging Width: 500 mm
Dimensions packaging Depth: 770 mm
Dimensions packaging Height: 230 mm
Total packaging weight: 2410 g
Packaging component carton/cardboard: 1205 g
Packaging component Styrofoam: 1205 g
Load cell connection: 4-wire
Pictograms Standard: External adjustment; Piece counting function; Sum function; Measuring with tolerance range (checkweighing function); Hold function (average value); Protection against dust and water splashes IP68; Integrated power supply unit 230 V/50 Hz; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Pictograms Factory: Data interface RS-232; Data Interface RS-485; Data Interface Bluetooth; Rechargeable battery
Accessories: YKN-01; KXS-A01; KXS-A02; KXS-A03; KXS-A04; KXS-A06; IXS-A01-2023a; YRO-02; IXS-A01; IXS-A02; IXS-A03; IXS-A04; YGR-01; GAB-A04
