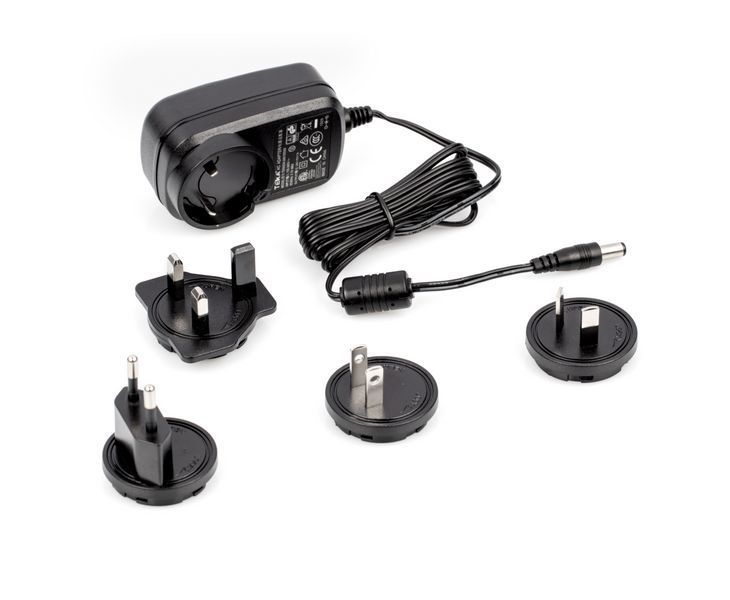

Mains adapter 100 V - 240 V, 50 / 60 Hz, standard EURO/US/AUS/UK/CH
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for conformity assessment: 965-132H
Article number for DAkkS calibration: 963-132H
Material housing: cast aluminium
Dimension completely mounted (W×D×H): 457×194×145 mm
Dimension completely mounted (Width): 457 mm
Dimension completely mounted (Depth): 194 mm
Dimension completely mounted (Height): 145 mm
Display type: LCD
Display digit height: 30 mm
Units: kg
Supplied power supply: Accu & Power supply
Battery / accumulator type: Li-Ion
Rechargeable battery charging time: 12 h
Rechargeable battery operating time - backlight on: 30 h
Rechargeable battery operating time - backlight off: 70 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min,off,5 min,15 min
Battery: 1×12 V, Type 23 A
Input voltage power supply / power [Max]: 110 V - 240 V AC
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,CH
Plug-in power supply / adapter for countries - option: EURO,UK,CH
Plug-in power supply type: Power adapter
Humity of environment [Min]: 0 %
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 12 kg
Net weight: 10 kg
UN number (hazardous goods): 3481
UN number (hazardous goods): Li-Ion, packed with device (UN 3481, Packing Instruction #7, Lithium ion batteries in compliance with Section II of PI 967)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 725×275×270 mm
Dimensions packaging Width: 725 mm
Dimensions packaging Depth: 275 mm
Dimensions packaging Height: 270 mm
Total packaging weight: 2 kg
Packaging component carton/cardboard: 1 kg
Packaging component Styrofoam: 1 kg
Tolerance (% of [Max]): 0,2%
Internal measuring frequency: 10 Hz
Load cell connection: 4-wire
Pictograms Standard: External adjustment; Rechargeable battery; Universal plug-in power supply; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Pictograms Factory: Conformity assessment
Accessories: HFD-A02; HFD-A07; YKA-07; HFD-A04
