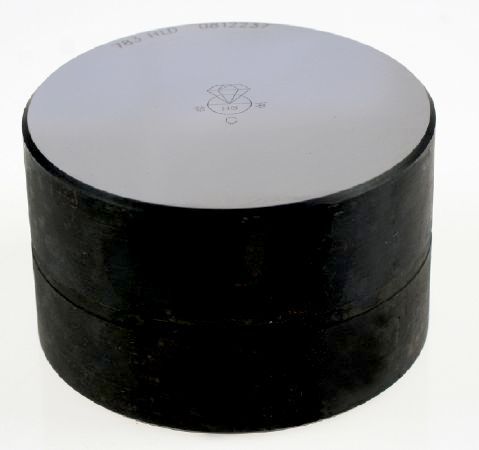

Test block type D/DC, accuracy ≥ 4 HL, Ø 90 mm (± 1 mm), net weight approx. 2.7 kg, hardness range 530 ± 40 HL
Weighing system: Strain gauge
Article number for conformity assessment: 965-129
Article number for DAkkS calibration: 963-129
Material housing: steel, lacquered
Dimension completely mounted (W×D×H): 1180×1130×90 mm
Dimension completely mounted (Width): 1180 mm
Dimension completely mounted (Depth): 1130 mm
Dimension completely mounted (Height): 90 mm
Material weighing plate: steel, lacquered
Dimension weighing platform (W×D×H): 995×945×40 mm
Dimension weighing platform (Width): 995 mm
Dimension weighing platform (Depth): 945 mm
Dimension weighing platform (Height): 40 mm
Dimensions weighing surface (W×D): 880×840 mm
Dimension weighing surface (Width): 880 mm
Dimension weighing surface (Depth): 840 mm
Display type: LCD
Display digit height: 25 mm
Units: kg
Supplied power supply: Power supply & battery function (battery not included)
Battery / accumulator type: Alkali(-Manganese)
Rechargeable battery optional: Rchrg. battery optional - intern
Rechargeable battery charging time: 12 h
Rechargeable battery operating time - backlight on: 20 h
Rechargeable battery operating time - backlight off: 40 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min,5 min,30 min,15 min
Battery: 6×1.5 V AA
Battery operating time: 20 h
Input voltage power supply / power [Max]: 100 V - 240 V, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,CH
Plug-in power supply / adapter for countries - option: EURO,AUS,UK,US,CH
Plug-in power supply type: Power adapter
Interfaces: RS-232 standard
Humity of environment [Min]: 5 %
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 80 kg
Net weight: 70 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Freight
Dimensions packaging (W×D×H): 1255×1100×285 mm
Dimensions packaging Width: 1255 mm
Dimensions packaging Depth: 1100 mm
Dimensions packaging Height: 285 mm
Total packaging weight: 12 kg
Packaging component carton/cardboard: 6 kg
Packaging component plastic: 6 kg
Packaging component Styrofoam: 6 kg
Pictograms Standard: Data interface RS-232; Hold function; Protection against dust and water splashes IP65; Prepared for battery operation; Universal plug-in power supply; Delivery Truck 2 days
Pictograms Option: Rechargeable battery; Accredited calibration (DKD)
Pictograms Factory: Conformity assessment
Accessories: YKN-01; MBC-A06; MYC-01; MWA-A01; MWA-A02; YKI-02; MBC-A06S05; MWA-A04; AFH 13; YKG-01; YKH-01; CFS-A01; YKC-01; YKI-10; YKI-11; YKI-12; YKT-01; MBC-A08; YKA-43; YKA-44; MBC-A08-2024e
