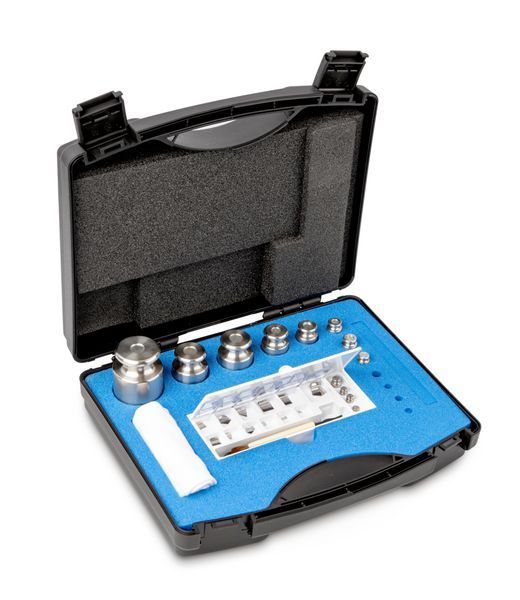

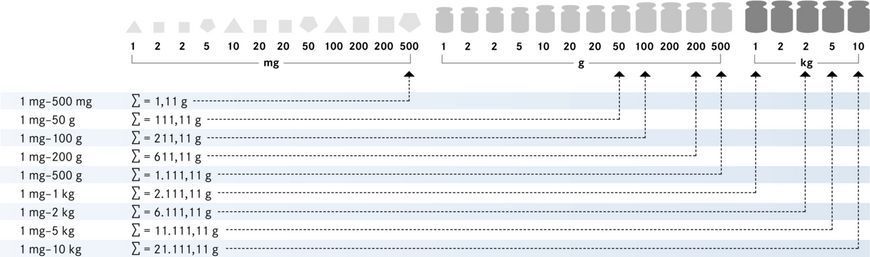

- The milligram weights contained in this weight set (denomination 1 mg - 500 mg) are in a separate plastic case
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for DAkkS calibration: 963-128
Material weighing plate: stainless steel
Dimension weighing platform (W×D×H): 300×240×86 mm
Dimension weighing platform (Width): 300 mm
Dimension weighing platform (Depth): 240 mm
Dimension weighing platform (Height): 86 mm
Dimensions weighing surface (W×D): 300×240 mm
Dimension weighing surface (Width): 300 mm
Dimension weighing surface (Depth): 240 mm
Display type: LCD
Display digit height: 55 mm
Units: kg
Supplied power supply: Power supply unit
Battery / accumulator type: Pb
Rechargeable battery optional: Rchrg. battery optional (factory)
Rechargeable battery charging time: 12 h
Rechargeable battery operating time - backlight on: 40 h
Rechargeable battery operating time - backlight off: 80 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 1 - 9 min
Input voltage power supply / power [Max]: 220 V - 240 V AC, 50 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO
Plug-in power supply / adapter for countries - option: UK,CH
Plug-in power supply type: Built-in power supply
Interfaces: RS-232 (optional, factory),Bluetooth (optional, factory),RS-485 (optional, factory)
Humity of environment [Min]: 0 %
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 8 kg
Net weight: 6 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 490×575×215 mm
Dimensions packaging Width: 490 mm
Dimensions packaging Depth: 575 mm
Dimensions packaging Height: 215 mm
Total packaging weight: 2 kg
Packaging component carton/cardboard: 1 kg
Packaging component Styrofoam: 1 kg
Load cell connection: 4-wire
Pictograms Standard: External adjustment; Piece counting function; Sum function; Measuring with tolerance range (checkweighing function); Hold function (average value); Load Cell: Protection against dust and water splashes IP65; Protection against dust and water splashes IP68; Integrated power supply unit 230 V/50 Hz; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Pictograms Factory: Data interface RS-232; Data Interface RS-485; Data Interface Bluetooth; Rechargeable battery
Accessories: KXS-A03; IXS-A02; YGR-01; YKN-01; IXS-A01; AFH 13; KXS-A01; IXS-A04; GAB-A04; KXS-A04; YKK-01; KXS-A06; IXS-A01-2023a; IXS-A03; KXS-A02
