- Individual weight sets: You can put together your own "tailor-made" individual set of weights yourself

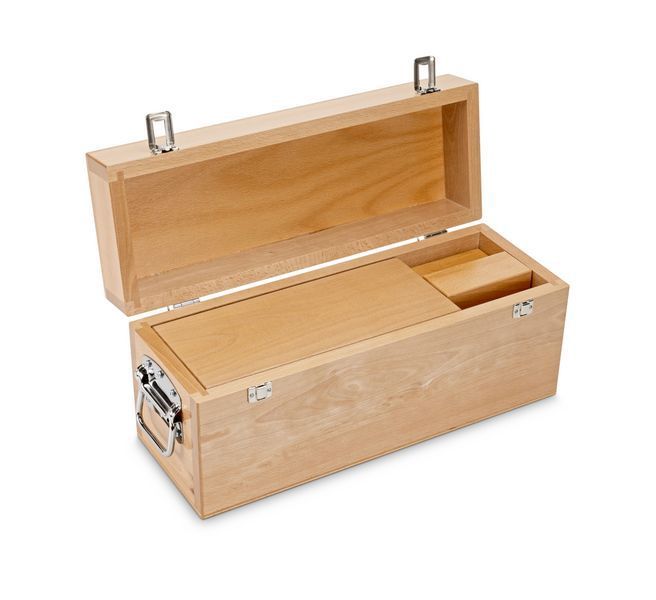

- KERN will make your own personal wooden box / plastic carrying case to carry the weights
- The largest individual weight which will fit is given in the table
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for conformity assessment: 965-228
Article number for DAkkS calibration: 963-128
Dimension completely mounted (W×D×H): 495×340×225 mm
Dimension completely mounted (Width): 495 mm
Dimension completely mounted (Depth): 340 mm
Dimension completely mounted (Height): 225 mm
Material weighing plate: stainless steel
Dimension weighing platform (W×D×H): 230×230×103 mm
Dimension weighing platform (Width): 230 mm
Dimension weighing platform (Depth): 230 mm
Dimension weighing platform (Height): 103 mm
Dimensions weighing surface (W×D): 230×230 mm
Dimension weighing surface (Width): 230 mm
Dimension weighing surface (Depth): 230 mm
Display type: LCD
Display digit height: 16,5 mm
Units: kg
Supplied power supply: Power supply unit
Battery / accumulator type: Pb
Rechargeable battery optional: Rchrg. battery optional (factory)
Rechargeable battery charging time: 12 h
Rechargeable battery operating time - backlight on: 8 h
Rechargeable battery operating time - backlight off: 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min,off
Input voltage power supply / power [Max]: 100 - 240 V~ 50/60 Hz 190 mA
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,CH
Plug-in power supply / adapter for countries - option: EURO,AUS,UK,US,CH
Plug-in power supply type: Power adapter
Interfaces: RS-232 standard
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 6 kg
Net weight: 3,8 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 500×330×230 mm
Dimensions packaging Width: 500 mm
Dimensions packaging Depth: 330 mm
Dimensions packaging Height: 230 mm
Total packaging weight: 2 kg
Packaging component carton/cardboard: 2 kg
Cable length: 2,5 m
Load cell connection: 4-wire
Pictograms Standard: External adjustment; Device-internal Memory; Data interface RS-232; Interface command set KERN Communication Protocol (KCP); GLP/ISO Protocol; Value & time; Piece counting function; Sum function; Measuring with tolerance range (checkweighing function); Universal plug-in power supply; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Pictograms Factory: Rechargeable battery; Conformity assessment
Accessories: IFB-A01; KFB-A02; CFS-A03; CFS-A04; YKN-01; YKI-02; AFH 13; YKH-01; CFS-A01; YGR-01; YKI-10; YKI-11; YKI-12; YKT-01; KFB-A01; PFB-A03; PFB-A04; PFB-A05; PFB-A02
