Key facts
- Frequency range from 8 kHz to 1 GHz, 3 GHz or 6 GHz
- Outstanding single sideband (SSB) phase noise of < –134 dBc (meas.) at 1 GHz and an offset of 20 kHz
- Very low wideband noise of < –153 dBc (typ.) at 15 MHz < f ≤ 6 GHz and an offset of 30 MHz
- Ultra high output power of 34 dBm (meas.) at 1 GHz
- Compact form factor with 2 HU and ¾ 19" width

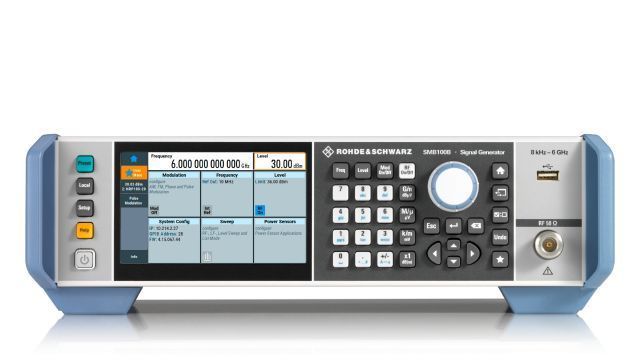

- The new R&S®SMB100B RF signal generator is all about performance and versatility in a small footprint. Outstanding spectral purity and very high output power combined with comprehensive functionality and very simple operation are some of the impressive features of the R&S®SMB100B. It offers a frequency range from 8 kHz to 1 GHz, 3 GHz or 6 GHz.
