- With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments/Breakage resistance) and EN 61010-1 (Electrical safety)

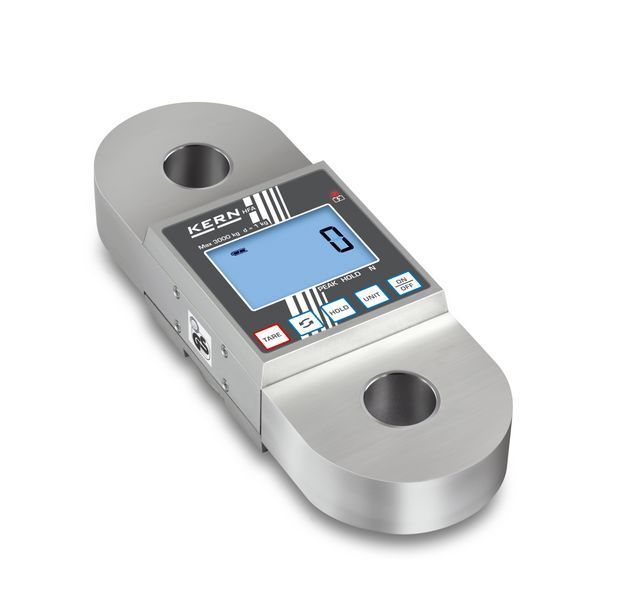

- With its high-quality finish, low weight and compact dimensions, this crane scale (tensile force gauge) is an essential device for industrial use, on building sites, in freight centres, ports etc.
- Because of its compact design it is also ideally suited for installation in systems where space is limited, etc.
- Ideally suited for determining weight quickly while loading and unloading
- Peak load display (peak hold)
- Hold function: For easy reading of the weighing result, the display can be "frozen" by pressing the Hold key
- Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
- Industry and production
- Construction and building sites
- Warehouse logistics
- Energy and raw materials industry
- Scrap and recycling industry
Weighing range (Max): 1000 kg
Readability (g): 0,5 kg
Reproducibility: 0,5 kg
linearity: ± 1 kg
Weighing system: Strain gauge
Stabilization time: 3 s
Article number for DAkkS calibration: 963-132
Material weighing plate: steel, powder-coated
Dimension weighing platform (W×D×H): 1500×1500×85 mm
Dimension weighing platform (Width): 1500 mm
Dimension weighing platform (Depth): 1500 mm
Dimension weighing platform (Height): 85 mm
Dimensions weighing surface (W×D): 1500×1500 mm
Dimension weighing surface (Width): 1500 mm
Dimension weighing surface (Depth): 1500 mm
Display type: LCD
Display digit height: 48 mm
Units: kg; g; ffa; PCS; %
Supplied power supply: Power supply unit
Battery / accumulator type: Li-Ion
Rechargeable battery optional: Rchrg. battery optional - intern
Rechargeable battery charging time: 8 h
Rechargeable battery operating time - backlight on: 11 h
Rechargeable battery operating time - backlight off: 22 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 5 min,2 min,1 min,30 min,60 min,30 sec
Battery: 3 V CR2032
Input voltage power supply / power [Max]: 100 V - 240 V, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,US,CH
Plug-in power supply / adapter for countries - option: EURO,UK,US,CH
Plug-in power supply type: Power adapter
Interfaces: RS-232 (optional),Ethernet (optional),Alibi memory (optional, factory),analogue (0 - 10 V) (optional),analogue (4 - 20 mA) (optional),Bluetooth BLE (v4.0) (optional),USB-Device (optional),KUP,WiFi (optional)
Humity of environment [Min]: 0 %
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 235 kg
Net weight: 175 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Freight
Dimensions packaging (W×D×H): 1615×1580×360 mm
Dimensions packaging Width: 1615 mm
Dimensions packaging Depth: 1580 mm
Dimensions packaging Height: 360 mm
Total packaging weight: 62 kg
Packaging component carton/cardboard: 1240 g
Packaging component wood: 60,76 kg
Load cell connection: 6-wire
Pictograms Standard: External adjustment; KERN IoT-ready; Data interface KERN Universal Port (KUP); Interface command set KERN Communication Protocol (KCP); GLP/ISO Protocol; Value & time; Piece counting function; Sum function; Percentage determination function; Units switchable; Measuring with tolerance range (checkweighing function); Hold function (average value); Platform: Protection against dust and water splashes IP67; Load Cell: Protection against dust and water splashes IP67; Universal plug-in power supply; Weighing principle Strain gauges; Delivery Truck 2 days
Pictograms Option: EasyTouch compatible; Data interface RS-232; Data Interface USB; Data Interface WiFi; Data Interface Bluetooth; Network interface; Analogue interface; Rechargeable battery; Accredited calibration (DKD)
Pictograms Factory: Alibi memory
Accessories: BFS-A07; CFS-A03; YKR-01; YKN-01; BFS-A06N; BFS-A08N; BFS-A09N; YBA-A18S05; YKG-01; YKH-01; KUP-01; KUP-03; KUP-04; KUP-05; KUP-06; KUP-08; KUP-13; YMM-04; YKC-01; YKT-01; YKA-27; YBA-A18
