Quantity
|
Cost
|
||
|
|
|||
|
|
|||
- With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments/Breakage resistance) and EN 61010-1 (Electrical safety)

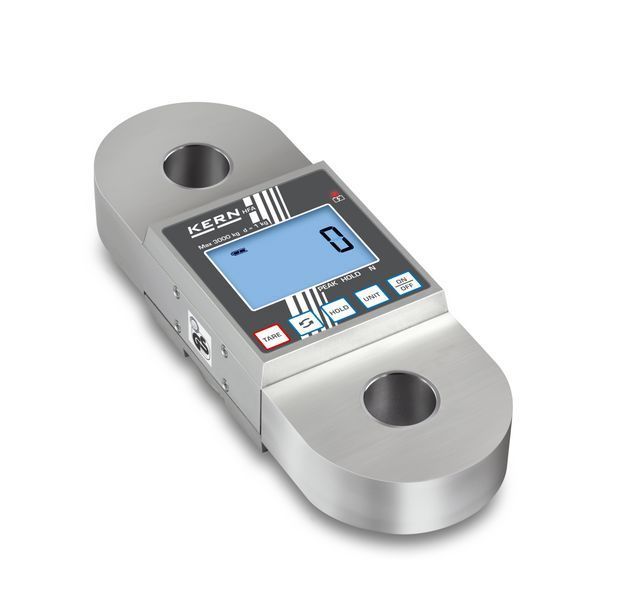

- With its high-quality finish, low weight and compact dimensions, this crane scale (tensile force gauge) is an essential device for industrial use, on building sites, in freight centres, ports etc.
- Because of its compact design it is also ideally suited for installation in systems where space is limited, etc.
- Ideally suited for determining weight quickly while loading and unloading
- Peak load display (peak hold)
- Hold function: For easy reading of the weighing result, the display can be „frozen“ by pressing the Hold key
- Tare: Resets the display to „0“ when there is a load on the scale. Now removed or added loads are directly displayed
- Industry and production
- Construction and building sites
- Warehouse logistics
- Energy and raw materials industry
- Scrap and recycling industry
Weighing range (Max): 3000 kg
Readability (g): 1 kg
Reproducibility: 1 kg
linearity: ± 2 kg
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for DAkkS calibration: 963-129H
Material housing: plastic

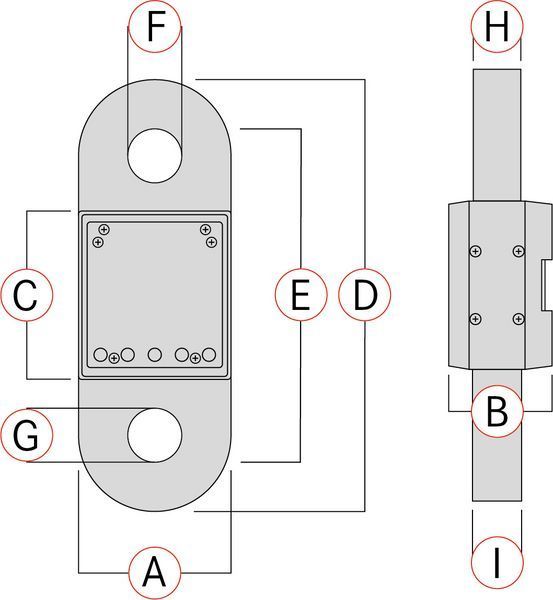

Dimension housing (W×D×H): 82×43×153 mm
Dimension housing (Width): 82 mm
Dimension housing (Depth): 43 mm
Dimension housing (Height): 153 mm
Display type: LCD
Display digit height: 12 mm
Units: kg; lb; N
Supplied power supply: Battery
Battery / accumulator type: Alkali(-Manganese)
Auto-off interval(s) in battery mode/rechargeable battery mode: off,4 min
Battery: 3×1.5 V AA
Battery operating time: 300 h
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 5 °C
Ambient temperature [Max] (°C): 35 °C
Gross weight: 0,90 kg
Net weight: 0,30 kg
UN number (hazardous goods): Drycell (Alkalines, nickel-cadmium, zinc-carbon, Packing instruction #1, Not Restricted as per Special Provision A123)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 215×150×85 mm
Dimensions packaging Width: 215 mm
Dimensions packaging Depth: 150 mm
Dimensions packaging Height: 85 mm
Total packaging weight: 622 g
Packaging component Paper: 51 g
Packaging component carton/cardboard: 861 g
Packaging component plastic: 3 g
Packaging component Styrofoam: 76 g
Packaging component foam: 19 g
Tolerance (% of [Max]): 0,5%
Internal measuring frequency: 5 Hz
Load cell connection: 4-wire
Pictograms Standard: External adjustment; Units switchable; Hold function (average value); Prepared for battery operation; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Accessories: HCB-A01; HCB-A02; YHA-06; 366-79; YSC-04
Technical Data Sheet (PDF)
