- With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments/Breakage resistance) and EN 61010-1 (Electrical safety)
- With its high-quality finish, low weight and compact dimensions, this crane scale (tensile force gauge) is an essential device for industrial use, on building sites, in freight centres, ports etc.
- Because of its compact design it is also ideally suited for installation in systems where space is limited, etc.
- Peak load display (peak hold)
- Hold function: For easy reading of the weighing result, the display can be "frozen" by pressing the Hold key
- Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed

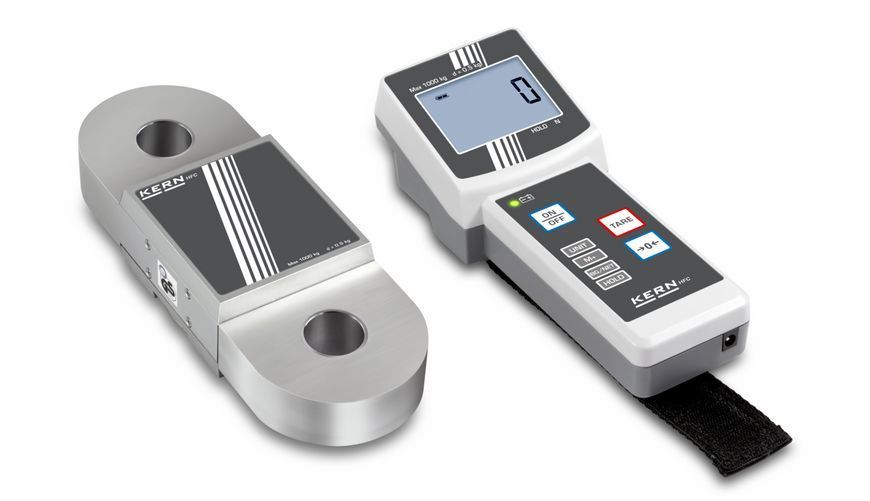

- Display device with integrated radio module, which the user can carry around with him, thanks to the convenient hand strap, standard. In this way the weighing data can always be read off the display device by the user, even when the user is a long way from the load receptor (force gauge) or under poor lighting conditions. Range up to 20 m. All functions can be selected
- Industry and production
- Construction and building sites
- Warehouse logistics
- Energy and raw materials industry
- Scrap and recycling industry
Weighing range (Max): 3000 kg
Readability (g): 1 kg
Reproducibility: 1 kg
linearity: ± 2 kg
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for DAkkS calibration: 963-132H
Material housing: cast aluminium
Dimension completely mounted (W×D×H): 457×194×145 mm
Dimension completely mounted (Width): 457 mm
Dimension completely mounted (Depth): 194 mm
Dimension completely mounted (Height): 145 mm
Display type: LCD
Display digit height: 30 mm
Units: kg
Supplied power supply: Accu & Power supply
Battery / accumulator type: Li-Ion
Rechargeable battery charging time: 12 h
Rechargeable battery operating time - backlight on: 30 h
Rechargeable battery operating time - backlight off: 70 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min,off,5 min,15 min
Battery: 1×12 V, Type 23 A
Input voltage power supply / power [Max]: 110 V - 240 V AC
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,CH
Plug-in power supply / adapter for countries - option: EURO,AUS,UK,US,CH
Plug-in power supply type: Power adapter
Humity of environment [Min]: 0 %
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 13 kg
Net weight: 10 kg
UN number (hazardous goods): 3481
UN number (hazardous goods): Li-Ion, packed with device (UN 3481, Packing Instruction #7, Lithium ion batteries in compliance with Section II of PI 967)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 725×270×265 mm
Dimensions packaging Width: 725 mm
Dimensions packaging Depth: 270 mm
Dimensions packaging Height: 265 mm
Total packaging weight: 3 kg
Packaging component carton/cardboard: 660 g
Packaging component Styrofoam: 450 g
Tolerance (% of [Max]): 0,2%
Internal measuring frequency: 10 Hz
Load cell connection: 4-wire
Pictograms Standard: External adjustment; Sum function; Rechargeable battery; Universal plug-in power supply; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Accessories: HFD-A02; HFD-A07; YKA-07; HFD-A04
