- With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments/Breakage resistance) and EN 61010-1 (Electrical safety)
- Professional device for robust applications in production, quality control, logistics etc. Because of its stable construction and robust design, it is ideal for continuous use in industrial environment
- High mobility: thanks to rechargeable battery operation, compact, lightweight construction, it is suitable for the use in several locations (production, warehouse, dispatch department, etc.)
- Adaptation of the readout to unstable environmental conditions at the push of a button (you can select between 3 levels)
- Hold function: For easy reading of the weighing result, the display can be "frozen" by pressing the Hold key
- Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
- Hook with safety catch, revolving

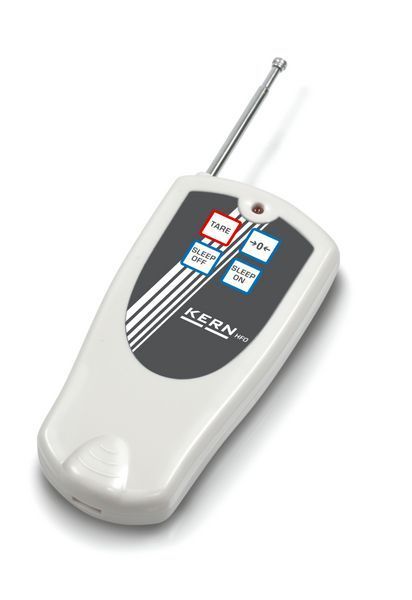

- Radio remote control standard. Range up to 20 m. All functions can be selected (excl. ON/OFF). W×D×H 48×10×95 mm. Batteries included, 12 V, Typ 23A
- Industry and production
- Construction and building sites
- Warehouse logistics
- Energy and raw materials industry
- Scrap and recycling industry
Weighing range (Max): 10000 kg
Readability (g): 1 kg
Reproducibility: 5 kg
linearity: ± 10 kg
Weighing system: Strain gauge
Stabilization time: 3 s
Article number for DAkkS calibration: 963-127
Material housing: plastic
Dimension housing (W×D×H): 210×340×120 mm
Dimension housing (Width): 210 mm
Dimension housing (Depth): 340 mm
Dimension housing (Height): 120 mm
Dimension completely mounted (W×D×H): 210×340×120 mm
Dimension completely mounted (Width): 210 mm
Dimension completely mounted (Depth): 340 mm
Dimension completely mounted (Height): 120 mm
Material weighing plate: stainless steel
Dimension weighing surface (Ø): 160 mm
Display type: LCD graphic
Display digit height: 15 mm
Units: g; gn; dwt; tl (Tw); tl (HK); ozt; tl (Singap, Malays); ct; mo; lb; oz
Supplied power supply: Power supply unit
Input voltage power supply / power [Max]: 100 V - 240 V, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO,AUS,UK,US,CH
Plug-in power supply / adapter for countries - option: EURO,UK,US,CH
Plug-in power supply type: Power adapter
Interfaces: RS-232 standard
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 15 °C
Ambient temperature [Max] (°C): 35 °C
Gross weight: 4,4 kg
Net weight: 3,2 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 450×320×300 mm
Dimensions packaging Width: 450 mm
Dimensions packaging Depth: 320 mm
Dimensions packaging Height: 300 mm
Total packaging weight: 1,2 kg
Packaging component Paper: 165 g
Packaging component carton/cardboard: 800 g
Packaging component plastic: 30 g
Packaging component foam: 100 g
Pictograms Standard: External adjustment; Data interface RS-232; GLP/ISO Protocol; Value & time; Piece counting function; Formulation function; Density determination function; Percentage determination function; Measuring with tolerance range (checkweighing function); Suspended weighing; Universal plug-in power supply; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Accessories: ALT-A02; YKN-01; YKI-02; PLJ-A01S05; YKG-01; YKH-01; 572-926; YPS-03; YPS-04; YPS-05; YKC-01; YKI-10; YKI-11; YKI-12; YKT-01; YKA-04
Technical Data Sheet (PDF)
