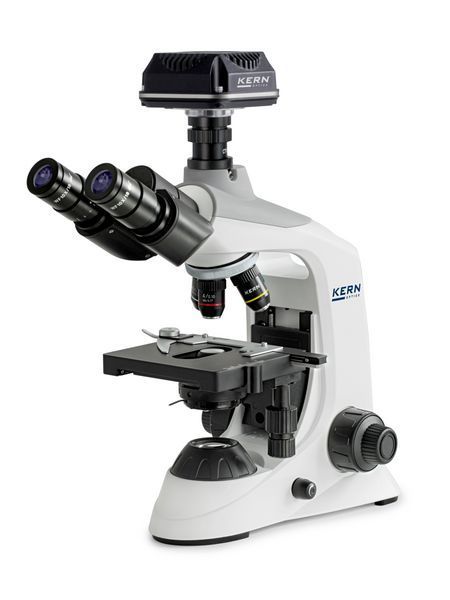

- Laboratory microscopes from the OBE range are also available to you as a comprehensive digital solution for your live investigations. Optionally available with an mounted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery
- The mounted C-mount camera is available in different versions and can be used anywhere
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
OBE 134
- The KERN OBE stands out through its exclusive, dynamic device, which is second to none in terms of sturdy construction and ergonomics. The clever storage compartment on the back will enables quick practical storage for your power cable. Thanks to the USB connection technology, it is also possible to supply power using an external powerbank
- The impressive, infinitely dimmable 3W LED guarantees bright illumination of your sample
- A further highlight is the Butterfly tube which is integrated as standard and which enables you to achieve the ideal viewing angle. The height-adjustable and thereby focusable 1.25 Abbe condenser with aperture diaphragm is a further quality feature of the OBE range and guarantees the very best concentration of light
- Height adjustment of the fully-equipped mechnical stage is carried out using a coarse and fine focusing knob on bothsides. The ergonomically designed coaxial drive enables you to work with the samples and move them rapidly
ODC 832
- Through the proven CMOS technology, in connection with the USB 3.0 the images are shown quickly and clearly
- These cameras are also ideal for more demanding applications, such as, for example, darkfield, phase contrast and for fluorescence applications
- Your daily work is made significantly easier with the very best synchronisation, a high frame rate as well as stable image performance together with our Microscope VIS software which we deliver with the product.
- The power supply is through the USB cable, which means that no additional power supply is required
- As well as the camera, the delivery includes our multi-lingual KERN Microscope VIS Basic KERN OXM 901, a USB cable (Length: 2000 mm) various eyepiece adapters and an object micrometer to calibrate the software
Interfaces: USB 3.0
Gross weight: 0,50 kg
Net weight: 0,45 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 145×95×60 mm
Dimensions packaging Width: 145 mm
Dimensions packaging Depth: 95 mm
Dimensions packaging Height: 60 mm
Total packaging weight: 72,1 g
Packaging component Paper: 72,1 mg
Packaging component carton/cardboard: 34,5359 g
Packaging component plastic: 504,7 mg
Packaging component Styrofoam: 0 g
Packaging component foam: 36,9873 g
Camera resolution: 5,1 MP
Camera sensor type: Aptina CMOS
Camera sensor size: 1/2,8"
Pictograms Standard: Data Interface USB; PC software; Package shipment 1 day
Accessories: OXM 902; ODC-A2404; ODC-A8107; ODC-A8106
