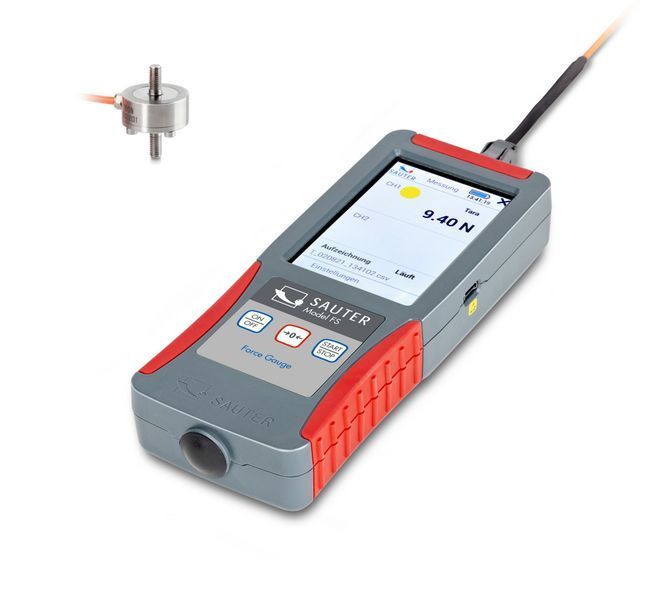

Premium force-measuring device FS 2
- 3,5" touchscreen with touch pen
- Measurement of forces in different tensile or compression directions possible with only one measuring device
- Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
- The specific data of an external sensor are stored directly in the connector
- Track function for continuous measurement display
- Peak value measurement
- Tolerance function
- Internal device memory (16 GB)
- USB interface for data transfer and power supply as standard
- Two-point adjustment with weights or numerical adjustment possible
- Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C
Miniature cylindrical load cell made from stainless steel CO 50-Y2
- Accuracy class in accordance with OIML G5
- Nominal sensitivity: 1,5 mV/V
- High precision (comprehensive Error 0,5% F.S.)
- Protection against dust and water splashes IP65
- Area of application: for tensile and compressive force measurement
- Test laboratories
- Research and development
- Automotive industry
- Maintenance and servicing
- Plastics technology
Gross weight: 0,40 kg
Net weight: 0,10 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 85×65×45 mm
Dimensions packaging Width: 85 mm
Dimensions packaging Depth: 65 mm
Dimensions packaging Height: 45 mm
Total packaging weight: 300 g
Packaging component carton/cardboard: 300 g
Ocular magnifications: 10x
Ocular visual field: 20 mm
Pictograms Standard: Package shipment 1 day
Technical Data Sheet (PDF)
