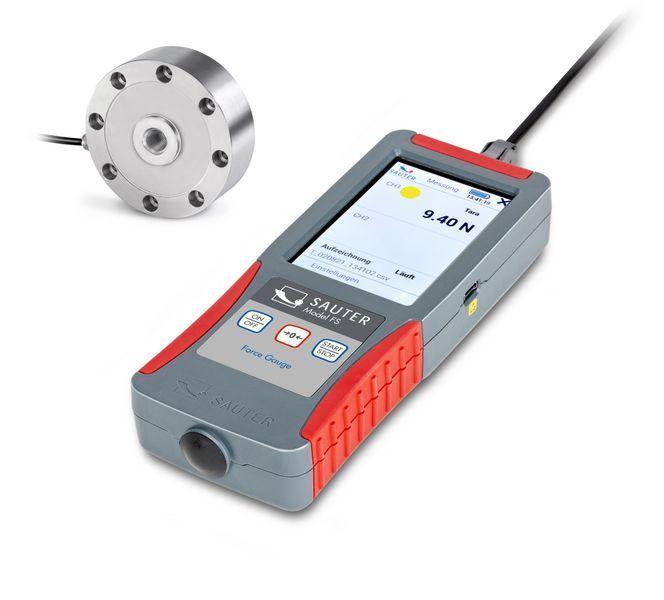

Premium force-measuring device FS 2
- Measurement of forces in different tensile or compression directions possible with only one measuring device
- 3,5" touchscreen with touch pen
- Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
- The specific data of an external sensor are stored directly in the connector
- Track function for continuous measurement display
- Peak value measurement
- Tolerance function
- Internal device memory (16 GB)
- USB interface for data transfer and power supply as standard
- Two-point adjustment with weights or numerical adjustment possible
- Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C
Loadcell made of steel alloy CR 5000-1Y1
- Accuracy class in accordance with OIML C1
- High precision (comprehensive Error 0,05% F.S.)
- Nominal sensitivity: 2 mV/V
- Protection against dust and water splashes IP68 (in accordance with EN 60529), hermetically encapsulated
- Area of application: for tensile and compressive force measurement
- Test laboratories
- Research and development
- Automotive industry
- Maintenance and servicing
- Plastics technology
Gross weight: 0,50 kg
Net weight: 0,40 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 100×50×50 mm
Dimensions packaging Width: 100 mm
Dimensions packaging Depth: 50 mm
Dimensions packaging Height: 50 mm
Total packaging weight: 100 g
Packaging component plastic: 100 g
Technical Data Sheet (PDF)
