20 kHz Range Shaker | Model 2025E-HF

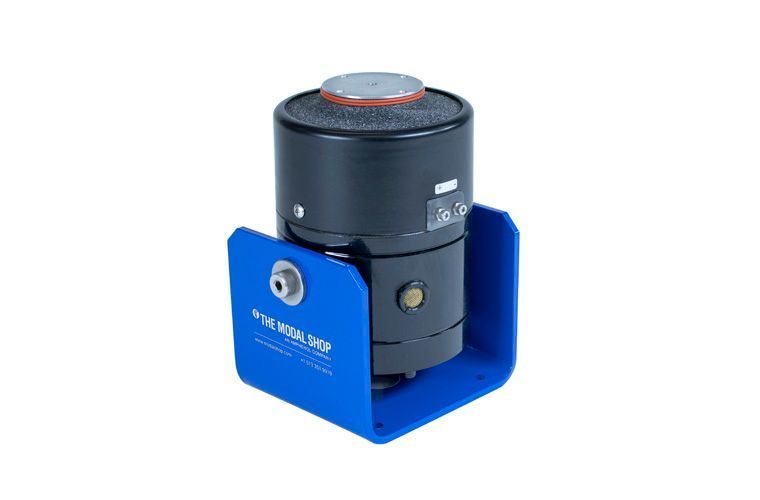

The Modal Shop 2025E-HF High Frequency Shaker is a 13 lbf (111 N) sine-peak electrodynamic unit. The shaker is designed for general purpose vibration testing of small components and stress screening of electronic sub-assemblies. The shaker has an extended frequency range for use in calibration of accelerometers and general purpose high frequency testing. The compact size of the 2025E-HF shaker (11 lb / 5 kg total) and large specimen mounting table surface (2.125" / 54 mm diameter) with multiple internally-threaded attachment points makes the shaker assembly ideally suited for such applications as production screening, accelerometer calibration and high frequency testing.
Highlights
- Frequency range up to 20 kHz
- Compact size (11 lb / 5 kg total) and large specimen mounting table surface (2.125" / 54 mm diameter) with multiple internally-threaded attachment points
- Trunnion base provides flexibility for rotating and aligning the shaker for easy set-up.
- Frequency range up to 20 kHz
- Compact size (11 lb / 5 kg total) and large specimen mounting table surface (2.125" / 54 mm diameter) with multiple internally-threaded attachment points
- Trunnion base provides flexibility for rotating and aligning the shaker for easy set-up.
Applications
- Production Screening
- Accelerometer Calibration
- High Frequency Testing
- Production Screening
- Accelerometer Calibration
- High Frequency Testing
