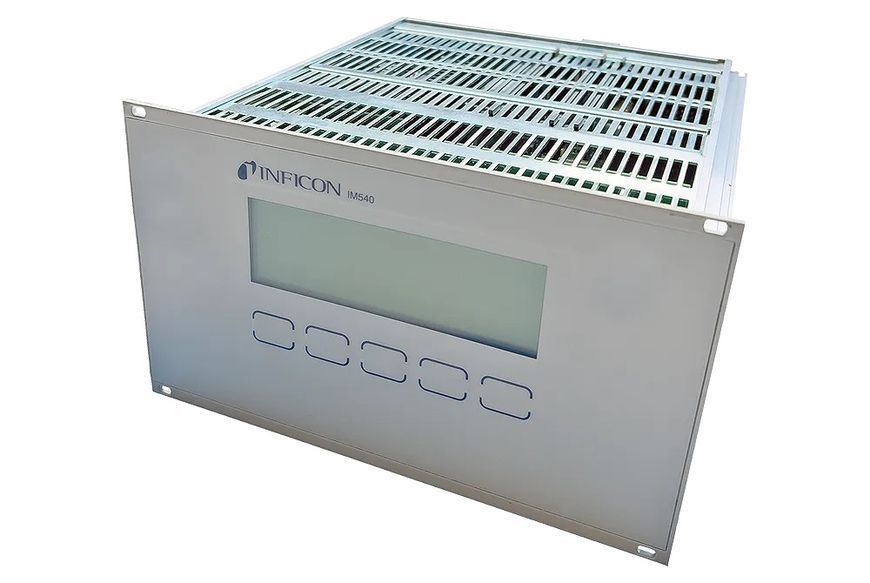

INFICON Vacuum Gauge Controller IM540

Saadaval tellimiseks
Item: IM540
Check the price
Log in to the site to
add the item to your wish list
%
Login to display the cumulative discount
Küsi pakkumist
Log in to the site to
add the item to the waiting list
Description

The Vacuum Gauge Controller IM540 is a versatile ionization gauge controller offering complete vacuum measurement and control in the range between 10-12 mbar and atmospheric pressure.  Depending on the application and user’s needs, IM540 is your one-solution as it may combine up to 4 different principles of vacuum measurement - Pirani, capacitive diaphragm, Bayard-Alpert and Extractor. This controller allows for a reliable and complete integration in complex process control systems.

Advantages

Supports the operation of the IE414 (Bayard-Alpert) and the IE514 (extractor) hot cathode ionization gauges

Two active gauges from the PSG5xx (Pirani), PCG55x (Pirani-Capacitance diaphragm) and CDG (Capacitance diaphragm) active gauge lines can be connected and operated

Simple operation with menu guided display for parameter, sensor or general settings

Built-in RS232 communication interface, optional Profibus DP communication card (IF 540 P)

Two set points (optional 7) with adjustable hysteresis

High resolution – 16 bit A/D converter

2 programmable 0 to 10 V chart recorder outputs
