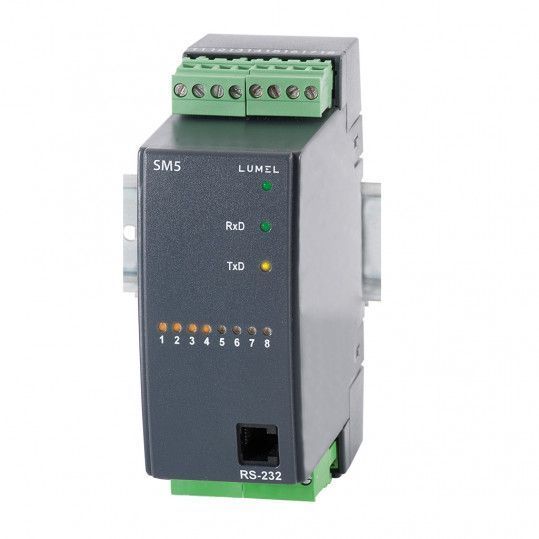

The SM5 module of logic inputs is destined to collect logic states of inputs and make them available to computerized systems working on the base of RS-485 interface.
SM5 module has 8 logic inputs and RS-485 interface with MODBUS RTU and ASCII transmission protocols. Programming of the modules is possible using RS-485 or RS-232 interface and eCon software.
Module parameters:
- 8 logic inputs,
- RS-485 communication interface with MODBUS RTU and ASCII transmission protocols to operate in computerized systems,
- configurable baud rate 2400, 4800, 9600, 19200, 38400, 57600, 115200 bits/s,
- programming interface on the frontal plate of RJ type (RS232).
- external dimensions: 45 x 120 x 100mm.
