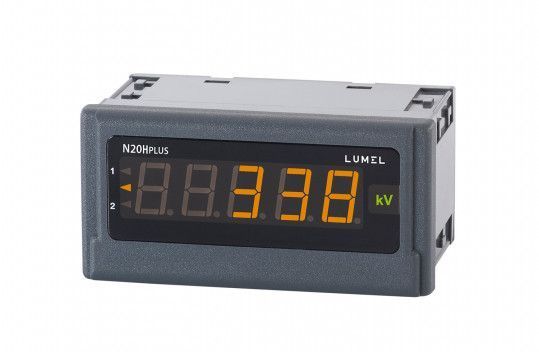

The N20HPLUS meter is a digital programmable panel instrument destined for measurements of d.c. voltages up to 400V. The readout display is a LED display which enables the exposition of results in red, green or orange colour.
Features:
- input:- d.c. voltage: 0...100V; ±100V; 0...400V; ±400V
- 2 alarm outputs of OC type (6 types of alarms) signaled by highlight of the alarm index,
- protection level ensured by the housing: IP65,
- readout field: 5 three-colour LED displays of 14 mm height,
- highlighted measuring units,
- supply: 85...253 V a.c./d.c. or 20...40 V a.c./ 20...60 V d.c.
- overall dimensions: 96 x 48 x 64 mm.
Meter programming through the RS-485 interface by means of the free eCon software.
Parameters which can be reprogrammed are as follows:
- display colour, individually in three intervals,
- thresholds of displayed overflows,
- display precision of the result (decimal point),
- highlight of the unit,
- averaging time of the measurement,
- recounting of indications (individual characteristic),
- two alarms of OC type operating in six working modes.
