Create Calibration Certificates for Vibration Instrumentation | Model C9110D-T

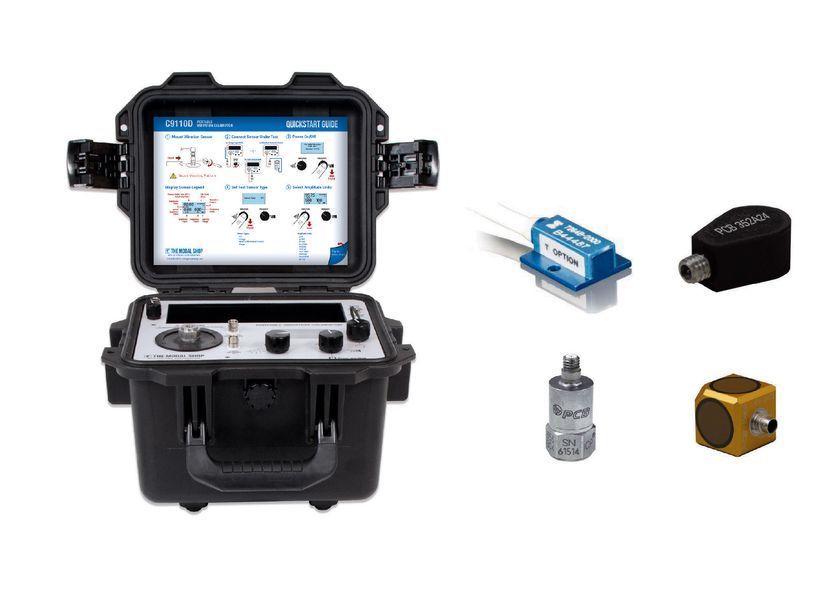

Optimized for vibration transducers found in research & development, automotive, aerospace, and general testing applications, Charge Mode Portable Vibration Calibrator Model C9110D-T is a traceable calibration system in a mobile package. The powerful shaker supports calibration of ICP® (IEPE), piezoelectric charge, piezoresistive (PR), modulated current (CVLD), and variable capacitance accelerometers over a broadband frequency range from 5 Hz to 10 kHz.
Model C9110D-T is a turnkey calibration solution, supplied with mounting adapters necessary to support the most common test & measurement sensors on the market. The device creates accelerometer calibration reports traceable to NIST and PTB per the ISO 16063-21 standard. Reports are fully customizable and compliant to ISO 17025. A built-in sensitivity display assists with on-site troubleshooting of vibration test beds and data acquisition. An integral precision quartz reference accelerometer and closed-loop level control gives the C9110D-T enhanced accuracy and stability. The device is packaged in a rugged Pelican® Storm case.
CALROUTE firmware allows engineers to program calibration routines with pass/fail tolerances for both frequency response and linearity. The shaker provides feedback to technicians after each test point. Model C9110D-T supports programming calibration tolerances – including asymmetric bounds – either per ISO 16063-21 or by simply programming hard limits.
Programming and data exchange is done on any computer with Microsoft Excel®. No other software is required. As an option, The Modal Shop offers calibration software that supports automated accelerometer calibration and databasing, utilizing the shaker and reference accelerometer within the C9110-T.
The C9110D-T is supplied with an accuracy calibration certificate. Calibration of the C9110D-T is accredited to the ISO 17025 standard by the American Association of Laboratory Accreditation (A2LA).
Optimized for vibration transducers found in research & development, automotive, aerospace, and general testing applications, Charge Mode Portable Vibration Calibrator Model C9110D-T is a traceable calibration system in a mobile package. The powerful shaker supports calibration of ICP® (IEPE), piezoelectric charge, piezoresistive (PR), modulated current (CVLD), and variable capacitance accelerometers over a broadband frequency range from 5 Hz to 10 kHz.
Model C9110D-T is a turnkey calibration solution, supplied with mounting adapters necessary to support the most common test & measurement sensors on the market. The device creates accelerometer calibration reports traceable to NIST and PTB per the ISO 16063-21 standard. Reports are fully customizable and compliant to ISO 17025. A built-in sensitivity display assists with on-site troubleshooting of vibration test beds and data acquisition. An integral precision quartz reference accelerometer and closed-loop level control gives the C9110D-T enhanced accuracy and stability. The device is packaged in a rugged Pelican® Storm case.
CALROUTE firmware allows engineers to program calibration routines with pass/fail tolerances for both frequency response and linearity. The shaker provides feedback to technicians after each test point. Model C9110D-T supports programming calibration tolerances – including asymmetric bounds – either per ISO 16063-21 or by simply programming hard limits.
Programming and data exchange is done on any computer with Microsoft Excel®. No other software is required. As an option, The Modal Shop offers calibration software that supports automated accelerometer calibration and databasing, utilizing the shaker and reference accelerometer within the C9110-T.
The C9110D-T is supplied with an accuracy calibration certificate. Calibration of the C9110D-T is accredited to the ISO 17025 standard by the American Association of Laboratory Accreditation (A2LA).
Highlights
- Create Calibration Certificates for Vibration Instrumentation
- Mobile, Lightweight Design with Long Battery Life
- Stepped Sine Tests with Pass/Fail
- Popular Mounting Accessories Included
- Open Programming via SCPI Commands
- Create Calibration Certificates for Vibration Instrumentation
- Mobile, Lightweight Design with Long Battery Life
- Stepped Sine Tests with Pass/Fail
- Popular Mounting Accessories Included
- Open Programming via SCPI Commands
Applications
- On-site Calibration of Vibration Instrumentation
- Troubleshooting Vibration Test Beds
- In-situ Testing & Confirmation of Accelerometer Sensitivity
- On-site Calibration of Vibration Instrumentation
- Troubleshooting Vibration Test Beds
- In-situ Testing & Confirmation of Accelerometer Sensitivity
Sensors Supported
The C9110D-T creates ISO 17025 compliant calibration reports via ISO 16063-21 methodology for the following vibration sensor types:
- ICP® (IEPE) Accelerometers
- Charge Mode Transducers
- Piezoresistive Accelerometers
- Variable Capacitance Sensors
- Modulated Current (CVLD) Transducers
The C9110D-T creates ISO 17025 compliant calibration reports via ISO 16063-21 methodology for the following vibration sensor types:
- ICP® (IEPE) Accelerometers
- Charge Mode Transducers
- Piezoresistive Accelerometers
- Variable Capacitance Sensors
- Modulated Current (CVLD) Transducers
