- With SAUTER scale kits, individual weighing solutions can be put together, for example, individual balance manufacturing in industry, automotive manufacturing and agriculture. In this way, a wide range requirements in terms of dimensions, materials, combinations of peripheral devices etc. can be fulfilled. Especially suitable for the manufacture of platform scales, weigh hoppers, silo scales, flush-mounted floor scales and other weighing devices. Area of use: Measuring mass as well as compressive force in harsh environments

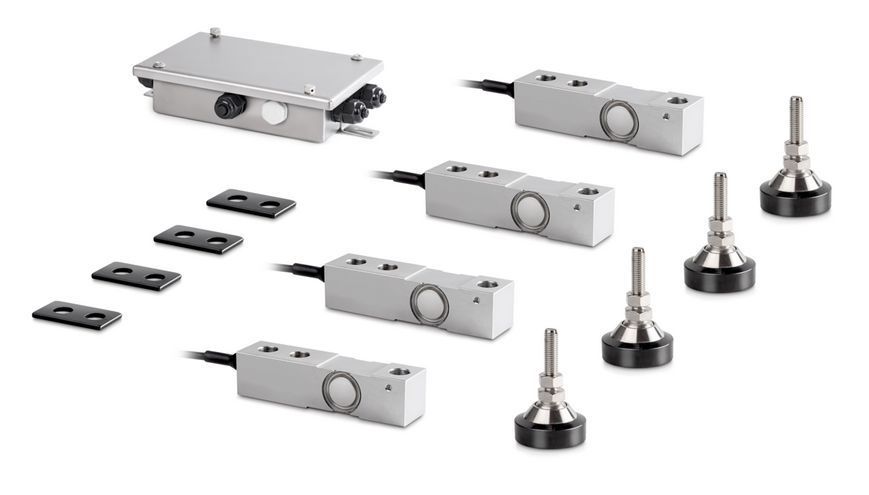

- Details for weighing cells (4 × SAUTER CT 1500-3Q1):
- Accuracy in accordance with OIML R60 C3
- Protection against dust and water splashes IP68/IP69K
- alloy steel
- 6-wire connection
- Nominal sensitivity: 2 mV/V - Junctionbox SAUTER CJ X467:
- Robust housing made of stainless steel with IP67 dust and spray protection - Note: Use the SAUTER CW R in combination with one of our display devices, for example, KFS-TM, YKV, CE HS
- Mechanical engineering and plant construction
- Logistics and packaging
- Food industry
- Servicing and workshop
- Container and silo weighing
- Chemical industry
- Pharmaceutical applications
Weighing range (Max): 4500 kg
Accuracy classe: III
Supplied power supply: Power supply unit
Input voltage power supply / power [Max]: 100 - 240 V
Plug-in power supply / adapter for countries - included with the delivery: EURO
Plug-in power supply / adapter for countries - option: EURO,UK
Plug-in power supply type: Power adapter
Gross weight: 2,8 kg
Net weight: 2,2 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 420×280×220 mm
Dimensions packaging Width: 420 mm
Dimensions packaging Depth: 280 mm
Dimensions packaging Height: 220 mm
Total packaging weight: 602 g
Packaging component Paper: 1,204 g
Packaging component carton/cardboard: 488,824 g
Packaging component plastic: 7,224 g
Packaging component Styrofoam: 104,748 g
Packaging component foam: 0 g
Optical system: Finite
Tube type: Monocular
Tube angle of inclination: 45°
Objective quality: achromatic
Standard objectives: 4× / 10× / 40×
Objectives magnifications: 4x / 10x / 40x
Nosepiece screw-in locations: 4
Ocular type: Eyepiece WF 10x / Ø 18mm with anti-fungus
Ocular magnifications: 10x
Ocular visual field: 18 mm
Illuminance: Transmitted light
Illumination type transmitted light: LED
Illumination intensity transmitted light: 0,5 W
Pictograms Standard: 360° rotatable microscope head; Monocular microscope; Abbe condenser; LED lighting; Plug-in power supply 230V/50 Hz; Package shipment 1 day
Accessories: OBB-A1184; OBB-A1441; OBB-A1442; ODC 874; OBB-A1467; OBB-A1468; OBB-A1474; OBB-A1475; OBB-A1479; OBB-A1480; OBB-A1561; OBB-A1562; OBB-A1563; OBB-A1564; OBB-A1565; ODC 881; OCS 901; OCS-A1101; OBB-A1387; OBB-A1466
Technical Data Sheet (PDF)
