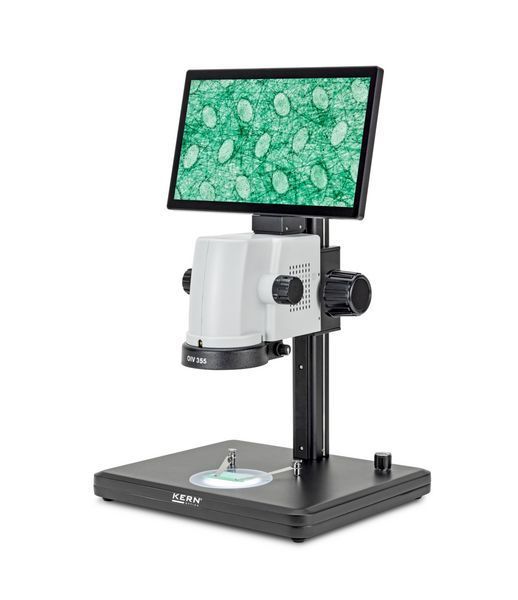

- The KERN OIV 355 is a video microscope which has been constructed to optimise digital stereo microscopy. Our well-conceived, comprehensive solution with axial optical unit enables immediate, simple display of your samples on the screen
- Combined incident- and transmitted-light illumination:
- The LED incident illumination unit (ring) included as standard guarantees the very best illumination of your sample

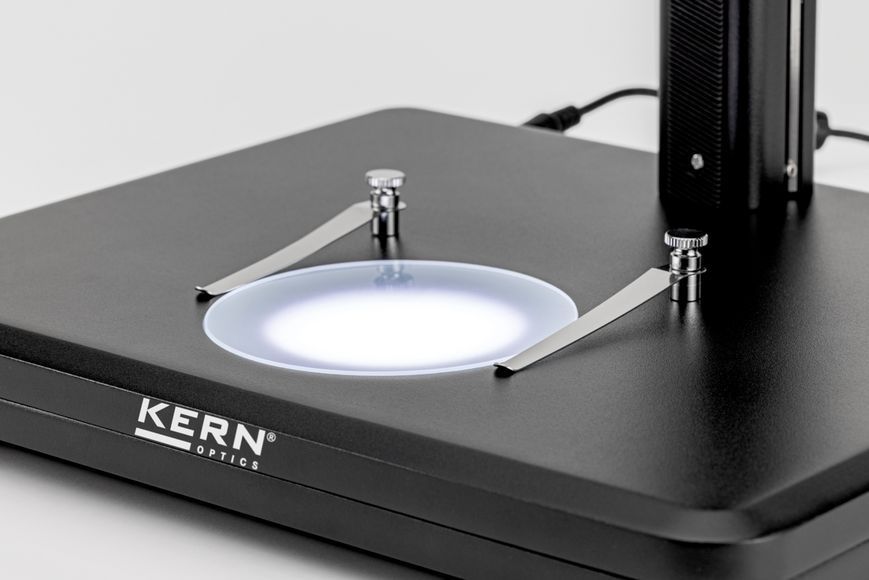

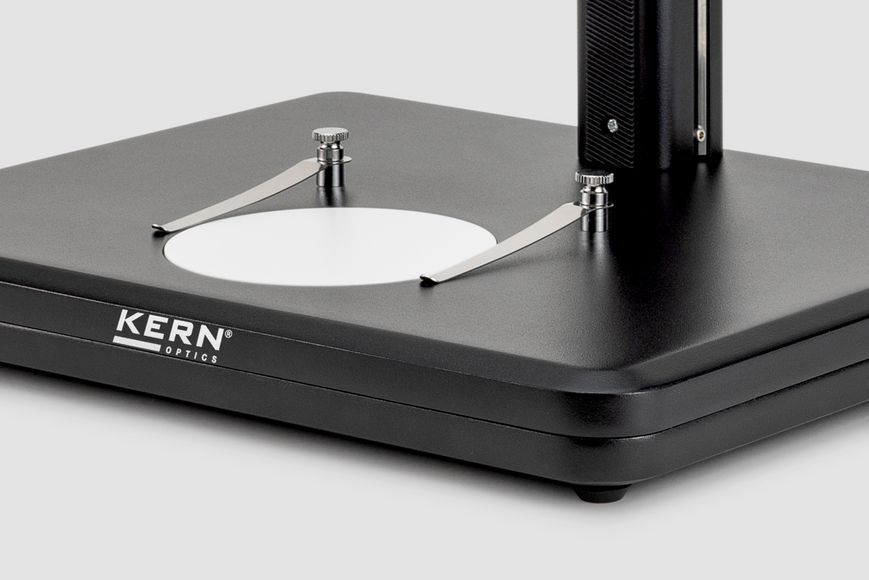

- The transmitted-light LED integrated in the stand supplements the incident-light illumination for flexible sample illumination - Combined with the large working surface, recording objects on the screen is ideally suited for monitoring, analysis and documentation in industrial environments
- The excellent optical unit enables continuous sharp image tracking across the entire zoom range from 0,7x - 4,5x
- The powerful 5.0 megapixel camera of the microscope without eyepiece has a high level of colour reproduction and offers smooth live monitoring of your samples using the HD monitor
- The high-quality display made from toughened glass is easy to clean due to the absence of edges
- The intuitive software and wireless USB mouse, both included with delivery, make it possible for you to easily process your results digitally and store them
- Using an HDMI interface it is possible to connect an additional monitor and in this way you can observe two devices operated in parallel in real time
- The image can be viewed on the PC using a USB connection. The software required for this also offers the option of carrying out measurements. It is available for download (S-Viewer microscope camera software)
- A special feature of this microscope range are the zoom wheels with integrated click stop. These offer precise selection of magnification levels and support the user when calibrating the documentation functions in the software

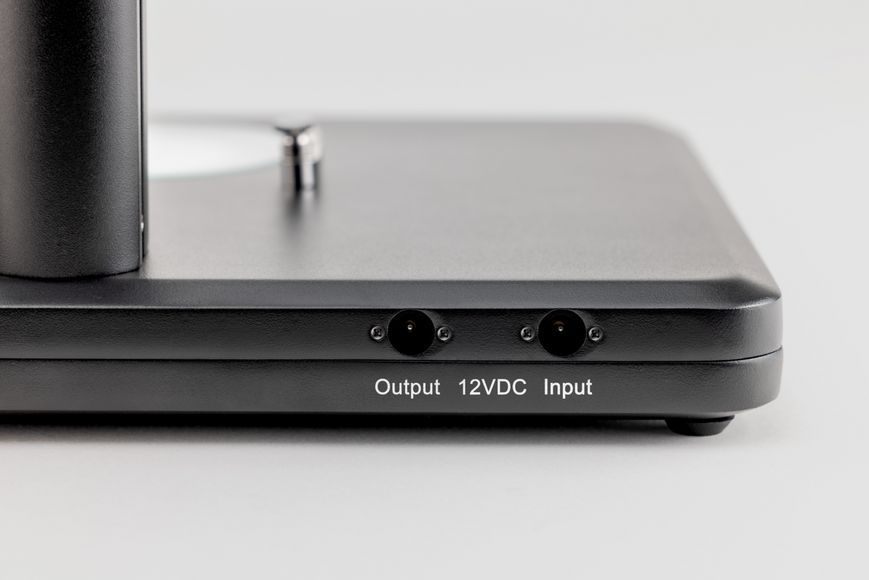

- The video microscope has one HDMI and two USB 2.0 interfaces as well as a micro SD card slot
- A protective dust cover, a USB stick (32 GB), a wireless USB mouse as well as multi-lingual user instructions are included in the delivery
- Menu languages: DE, EN, FR, IT, RU, JA, ZH
Display type: LCD
Supplied power supply: Power supply unit
Input voltage power supply / power [Max]: 100 V - 240 V, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO
Plug-in power supply / adapter for countries - option: EURO,UK,US,CH
Plug-in power supply type: Table power supply (separable)
Interfaces: USB 2.0,HDMI,MicroSD card slot
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 420×390×250 mm
Dimensions packaging Width: 420 mm
Dimensions packaging Depth: 390 mm
Dimensions packaging Height: 250 mm
Packaging component Paper: 0 g
Packaging component carton/cardboard: 320 g
Packaging component plastic: 30 g
Packaging component Styrofoam: 650 g
Optical system: Axial
Tube type: Display
Tube angle of inclination: flexible
Objectives magnifications: 0,7x - 4,5x
Illuminance: Reflected light,Transmitted light
Illumination type incident light: LED
Illumination intensity incident light: 3 W
Illumination type transmitted light: LED
Illumination intensity transmitted light: 5 W
Stand type: mechanical
Zoom [Min]: 0,7x
Zoom [Max]: 4,5x
Magnification ratio: 6,4:1
Camera resolution: 5 MP
Camera sensor type: Sony CMOS
Camera sensor size: 1/2,8"
Pictograms Standard: LED lighting; Incident illumination; Zoom function; Data Interface USB; HDMI digital camera; Plug-in power supply 230V/50 Hz; Package shipment 1 day
Accessories: OBB-A3225; OBB-A3226; OBB-A3227; OCS 901; OCS-A1101; OXM 904; 822-903; MLB-A09; YKK-01; OZB-A4805; OZB-A4806
