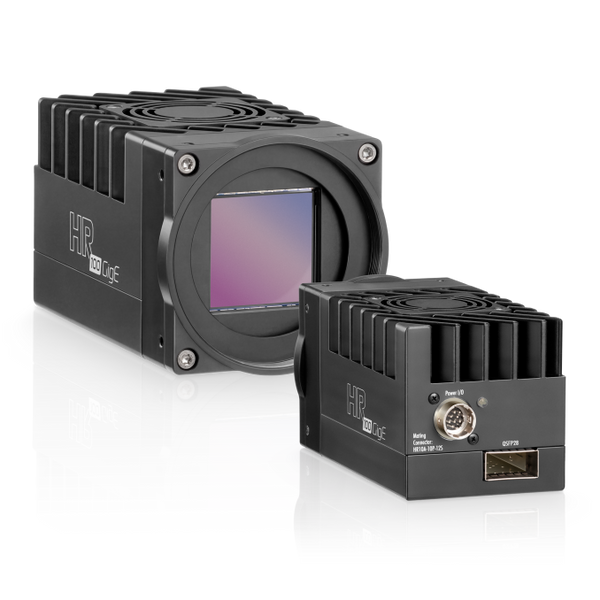

Allied Vision hr927C100GE 100GigE Industrial Camera
Downloads:
PDF Instruction 1
The Allied Vision hr927C100GE is a flagship ultra-high-resolution 100GigE industrial camera designed for demanding machine vision systems requiring maximum data throughput and extreme image fidelity. Built around the advanced 104.90 Megapixel Sony IMX927 CMOS sensor with Global Shutter technology, this device delivers square 10240 x 10240 resolution images at an impressive frame rate of up to 112 frames per second.
Featuring high-speed QSFP28 connectivity with GigE Vision 3.0 compliance and full RDMA support, the camera offloads image transfer overhead directly to systemic host memory. An onboard image buffer of 4032 MB RAM guarantees lossless high-rate burst processing, while 32768 MB non-volatile flash memory provides advanced device configuration capability. Precise triggering is enhanced through Precision Time Protocol IEEE 1588, built-in sequencer, and 4-channel PWM control.
Application Area
- Flat panel display FPD inspection and semiconductor wafer metrology
- High-resolution aerial mapping and large-scale geographic imaging
- Continuous optical quality control in high-speed manufacturing lines
- Surface defect detection in glass, film, and PCB production
- Advanced scientific research and color-critical optical measurement
Specifications
| Sensor Model | Sony IMX927 CMOS Color |
| Shutter Type | Global Shutter |
| Resolution | 10240 x 10240 (104.90 MP) |
| Sensor Format | 28.06 x 28.06 mm (Type 2.5) |
| Pixel Size | 2.74 um x 2.74 um |
| Spectral Range | 400 nm to 1000 nm (IR-Cut 680 Filter) |
| Maximum Frame Rate | 112 fps |
| Digital Interface | 100GigE QSFP28 (GigE Vision 3.0, RDMA) |
| Bit Depth | 8-bit, 10-bit, 12-bit (Bayer8, Bayer10, Bayer12) |
| Exposure Range | 8 us to 60 s |
| Gain Control | 0.0 dB to 48.0 dB |
| On-board Memory | 4032 MB RAM (Buffer), 32768 MB Flash |
| I/O Ports | 12-pin Hirose (2x 24V IN, 2x Open Drain OUT, RS422 IN/OUT) |
| Lens Mount | M58x0.75 |
| Power Supply | 24 to 25 VDC (30 W typical) |
| Dimensions and Weight | 93 x 62 x 62 mm, 550 g |
| Operating Temperature | -10 C to 60 C |
Package Contents
- Allied Vision HR 100GigE hr927C100GE camera body
- M58 protective cap
- Factory inspection certificate
