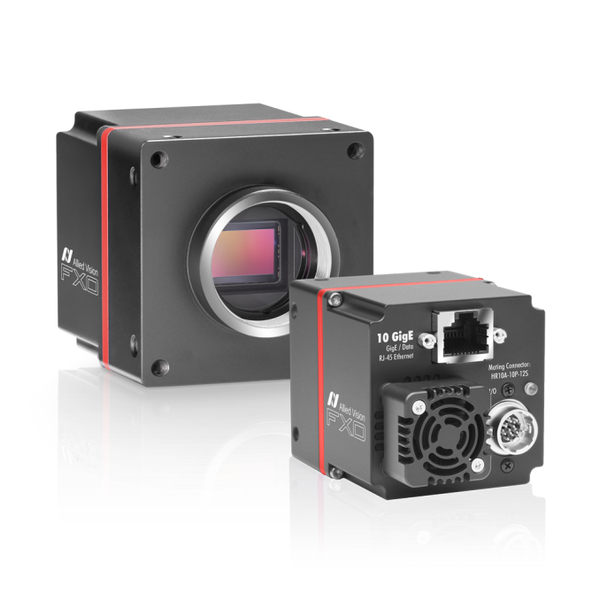

10GigE Industrial Camera Allied Vision fxo545CXGE (Sony IMX545, 12.3 MP, 61 fps, Color)
Downloads:
PDF Instruction 1
The Allied Vision fxo545CXGE is a cutting-edge high-speed industrial camera engineered for high-throughput machine vision applications. Featuring a 12.30 Megapixel Sony IMX545 CMOS sensor with global shutter technology and a high-bandwidth 10GigE interface (RJ-45), this camera captures crystal-clear 4096 × 3000 color images at frame rates up to 61 fps. It delivers exceptional dynamic range (72 dB) and an outstanding signal-to-noise ratio (39 dB), making it ideal for precision inspection processes.
Equipped with an advanced FPGA architecture, 896 MB RAM image buffer, and 32 MB flash storage, the camera supports critical industrial automation standards like GigE Vision 2.0 and IEEE 1588 PTP sync. Robust power options including Power over Ethernet (PoE) and a 12-pin Hirose connector provide seamless system integration, while the IR-Cut filter glass and C-mount design ensure maximum optical compatibility and image stability.
Application Scenarios
- Automated optical inspection (AOI) in semiconductor and PCB manufacturing
- High-speed quality control on packaging and printing production lines
- Intelligent transportation systems (ITS) and traffic monitoring
- Precision robotics guidance and 3D surface scanning
- Pharmaceutical inspection and medical imaging analysis
Technical Specifications
| Parameter | Value |
| Model / Product Code | fxo545CXGE / F002123 |
| Sensor Model | Sony IMX545 CMOS (Color, Global Shutter) |
| Optical Format / Pixel Size | Type 1/1.1 (11.22 × 8.22 mm) / 2.74 µm × 2.74 µm |
| Resolution | 4096 × 3000 pixels (12.30 MP) |
| Frame Rate | 61 fps |
| Interface / Protocol | 10GigE (RJ-45) / GigE Vision 2.0, GenICam |
| Bit Depth / Pixel Formats | 8-bit, 12-bit / Bayer8, Bayer12 |
| Dynamic Range / SNR | 72 dB / 39 dB |
| Exposure Time Range | 7 µs to 60 s |
| Gain Range | 0.0 dB to 48.0 dB |
| On-Board Memory | 896 MB RAM buffer, 32 MB Flash |
| I/O Ports | 12-pin Hirose (2x 24V In, 4x Open Drain Out, 1x Opto In, RS232) |
| Power Requirements | 10–25 VDC or PoE (Power consumption: 9 W typical) |
| Housing / Mount | 76 × 50 × 50 mm, 240 g / C-Mount, IP30 |
| Operating Temperature | -10 °C to +60 °C (housing) |
Package Contents
- Allied Vision fxo545CXGE 10GigE Camera
- C-Mount lens mount protective cap
- Technical data sheet and startup documentation
