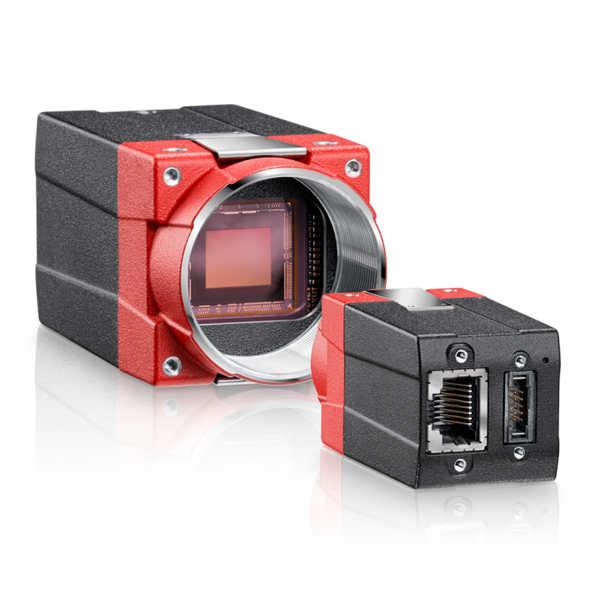

Allied Vision Alvium G5-511 5GBASE-T Industrial Camera
Downloads:
PDF Instruction 1
The Allied Vision Alvium G5-511 is a cutting-edge 5GBASE-T industrial camera designed for high-demanding machine vision applications. Powered by the advanced Sony IMX547 CMOS global shutter sensor, it delivers outstanding image quality with a resolution of 5.10 megapixels (2464 x 2064) at frame rates up to 79 frames per second.
Equipped with a versatile 5GigE interface offering backward compatibility with 2.5GBASE-T and 1000BASE-T networks, this camera simplifies integration while providing up to five times the bandwidth of standard GigE Vision cameras. Power over Ethernet (PoE) capability and integrated 512 MB image buffer ensure robust performance in automated production lines.
Application Scope
- Industrial automated inspection and quality control
- High-speed robotics and pick-and-place systems
- Medical imaging and optical microscopy
- Traffic monitoring and intelligent transportation systems
- Semiconductor and electronics manufacturing
Specifications
| Parameter | Value |
| Model | Alvium G5-511 |
| Sensor Model | Sony IMX547 CMOS |
| Resolution | 2464 x 2064 (5.10 MP) |
| Shutter Type | Global Shutter |
| Frame Rate | 79 fps |
| Pixel Size | 2.74 um x 2.74 um |
| Sensor Size | Type 1/1.8 (6.8 mm x 5.7 mm) |
| Interface | IEEE 802.3 5GBASE-T / 2.5GBASE-T / 1000BASE-T PoE Class 0 |
| On-board Memory | 512 MB RAM, 1024 KB Flash |
| Gain Range | 0.0 dB to 48.0 dB |
| Exposure Time | 8 us to 10 s |
| Power Requirements | 10.8 to 26.4 VDC AUX or PoE 802.3af |
| Dimensions | 60 x 29 x 29 mm |
| Weight | 100 g |
| Operating Temperature | -20°C to +60°C housing |
Package Contents
- Allied Vision Alvium G5-511 camera body
- CS-Mount / C-Mount adapter ring
- Safety documentation and quick start guide
