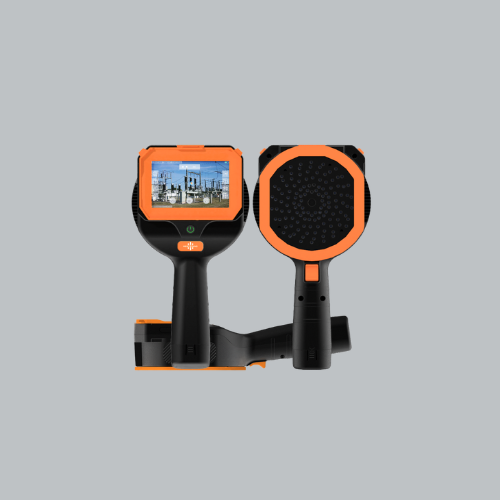

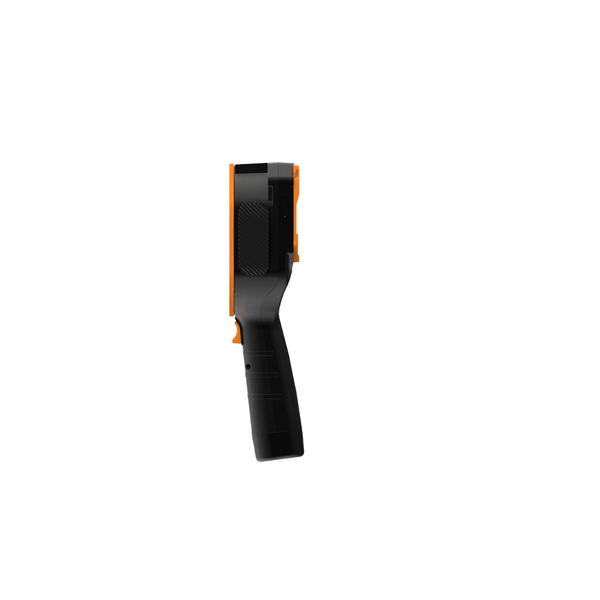

Acoustic Imaging Camera Hertzinno HZ-HA-171P
The acoustic imaging camera Hertzinno HZ-HA-171P is a next-generation diagnostic tool engineered for continuous industrial inspections, compressed gas leak detection, and high-voltage partial discharge localized analysis. Equipped with an array of 128 low-noise MEMS microphones, it provides pinpoint acoustic visualization over operating distances ranging from 0.3 to 200 meters.
Integrated edge AI algorithms enable quantitative leak assessment by calculating leak volume rates and financial losses in real time. For electrical assets, the system accurately classifies partial discharge phenomena (corona, surface, floating discharge) while displaying clear acoustic maps on a daylight-readable 1000 nits high-brightness screen.
Designed for heavy-duty field operation, the system supports hot-swappable batteries delivering up to 7 hours of continuous inspection time without operational interruption, establishing it as a reliable solution for power grids and large manufacturing plants.
Applications
- Detection of compressed air and technical gas leaks under pressure
- High-voltage substation and transmission line partial discharge diagnostics
- Mechanical health monitoring of bearings and rotating equipment
- Preventive maintenance in chemical, power, and manufacturing plants
- Energy loss quantification and industrial facility audit
Specifications
| Microphone Array | 128 low-noise MEMS microphones |
| Frequency Range | 2 kHz - 100 kHz |
| Detection Distance | 0.3 m - 200 m |
| Dynamic Range | -30 dB to 120 dB |
| Internal Storage | 64 GB |
| Operating Time | Up to 7 hours (hot-swappable battery) |
| Optical Camera Resolution | 13 MP |
| Display | 1280x720 pixels, 1000 nits brightness |
| Protection Class | IP54 |
Package Contents
- Acoustic Imager Hertzinno HZ-HA-171P
- Swappable rechargeable battery
- Charger
- Protective transport case
- Data interface cable
- User manual
