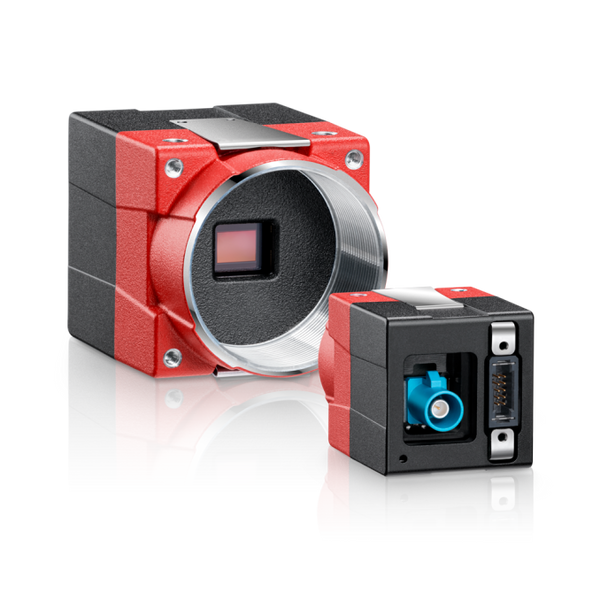

Allied Vision Alvium FP3-319 Embedded Vision FPD-Link III Camera
Downloads:
PDF Instruction 1
The Alvium FP3-319 is an innovative embedded vision camera engineered for demanding industrial automated inspection systems. Featuring the advanced Sony IMX265 CMOS sensor with a global shutter, this 3.2 megapixel unit guarantees crisp undistorted imaging of rapidly moving objects. Powered by the versatile FPD-Link III interface based on MIPI CSI-2, it allows long cable lengths and robust data transmission in noise-intensive industrial environments.
With its highly compact 41 x 29 x 29 mm housing, lightweight 70g design, and dynamic operating range from -20°C to 65°C, this camera simplifies integration into space-constrained machinery and embedded platforms. It supports versatile lens mounts including C-Mount, CS-Mount, and S-Mount, alongside non-isolated programmable GPIOs for precise synchronization in modern embedded vision applications.
Scope of Application
- Automated optical inspection in high-speed manufacturing
- Robotics and autonomous mobile platform navigation
- Medical imaging and laboratory automation devices
- Intelligent transportation systems and traffic monitoring
- Quality control in electronics and semiconductor assembly
Specifications
| Model | Alvium FP3-319 |
| Sensor Model | Sony IMX265 CMOS |
| Shutter Type | Global Shutter |
| Resolution | 2064 x 1544 (3.20 MP) |
| Pixel Size | 3.45 um x 3.45 um |
| Sensor Format | 7.1 x 5.3 mm (Type 1/1.8) |
| Digital Interface | FPD-Link III based on MIPI CSI-2 up to 4 lanes |
| Frame Rate / Exposure | 26 us to 10 s exposure time |
| Gain Range | 0.0 dB to 48.0 dB |
| Quantum Efficiency | 64 percent at 529 nm |
| Lens Mount Options | C-Mount CS-Mount S-Mount |
| Connectors | Coax STP options |
| GPIO | 2 programmable non-isolated lines |
| Dimensions | 41 x 29 x 29 mm |
| Weight | 70 g |
| Operating Temperature | -20 C to 65 C |
Package Contents
- Allied Vision Alvium FP3-319 camera unit
- Lens mount adapter according to selection
- Quick start configuration guide
