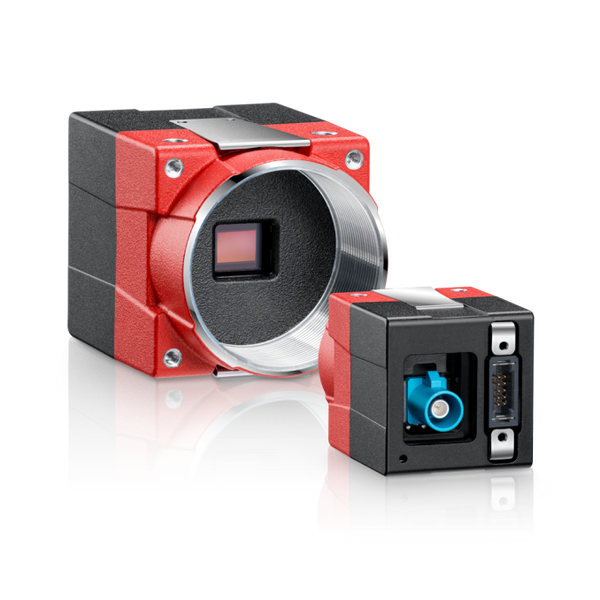

Allied Vision Alvium FP3-895 FPD-Link III Embedded Camera (Sony IMX267, 8.9 MP)
Downloads:
PDF Instruction 1
The Allied Vision Alvium FP3-895 is a high-performance embedded vision camera engineered for demanding industrial machine vision and automated systems. Equipped with a premium Sony IMX267 CMOS sensor delivering an 8.90 Megapixel resolution (4112 × 2176 pixels) and a true Global Shutter, this camera captures distortion-free images of fast-moving objects with crisp detail. Built on Allied Vision's innovative Alvium platform, it features an integrated Image Signal Processor (ISP) and on-board FPGA processing to offload critical tasks from the host processor.
Utilizing a high-bandwidth FPD-Link III interface based on MIPI CSI-2 (up to 4 lanes), the Alvium FP3-895 supports reliable long-distance cable connections up to 15 meters using thin coaxial or STP cabling. With exceptional gain control ranging from 0.0 dB to 48.0 dB, exposure times from 29 µs to 10 s, and versatile pixel format conversions (Monochrome, Bayer, YUV, RGB), it provides unmatched flexibility for space-constrained and embedded OEM developments.
Applications
- High-speed industrial inline quality control and automated optical inspection (AOI)
- Embedded vision systems for Autonomous Mobile Robots (AMR) and AGVs
- Robotic guidance, pick-and-place, and spatial tracking
- Medical diagnostics, laboratory automation, and life science imaging
- Intelligent Transportation Systems (ITS) and high-resolution license plate recognition
- Logistics inspection, package dimensioning, and barcode scanning
Specifications
| Parameter | Value |
| Model | Alvium FP3-895 |
| Product Series | Alvium FP3 |
| Sensor Model | Sony IMX267 |
| Sensor Type | CMOS Area Scan |
| Shutter Type | Global Shutter (GS) |
| Resolution | 4,112 × 2,176 (8.90 MP) |
| Sensor Size | 14.2 × 7.5 mm (16 mm, Type 1) |
| Pixel Size | 3.45 µm × 3.45 µm |
| Spectral Range | 300 nm to 1100 nm (Visible) |
| Chroma Options | Monochrome / Color |
| Sensor Bit Depth | 12-bit |
| Monochrome Pixel Formats | GREY, RAW10, RAW12, RAW8, Y10, Y12 |
| YUV Pixel Formats | UYVY, YCbCr411_8_CbYYCrYY, YCbCr422_8_CbYCrY, YCbCr8_CbYCr, YUV422 8-bit |
| RGB Pixel Formats | BGR8, RGB3, RGB8, RGB888 |
| Bayer Pixel Formats | BayerGR10, BayerGR10p, BayerGR12, BayerGR12p, BayerGR8 |
| Exposure Time Range | 29 µs to 10 s |
| Gain Control | 0.0 dB to 48.0 dB |
| Digital Interface | FPD-Link III (based on MIPI CSI-2, up to 4 lanes) |
| Connector Type | Coax / STP |
| Digital I/Os | 2 non-isolated programmable GPIOs |
| Power Requirements | 5 VDC over MIPI CSI-2 |
| On-board RAM (Image Buffer) | 256 KByte |
| Non-volatile Flash Memory | 1024 KByte |
| Lens Mount Options | C-Mount / CS-Mount |
| Operating Temperature (Housing) | -20 °C to +65 °C |
| Dimensions (L × W × H) | 41 × 29 × 29 mm |
| Weight | 70 g |
Scope of Delivery
- Allied Vision Alvium FP3-895 camera module
- Lens Mount (C-Mount or CS-Mount depending on configuration)
- Factory documentation and safety guidelines
