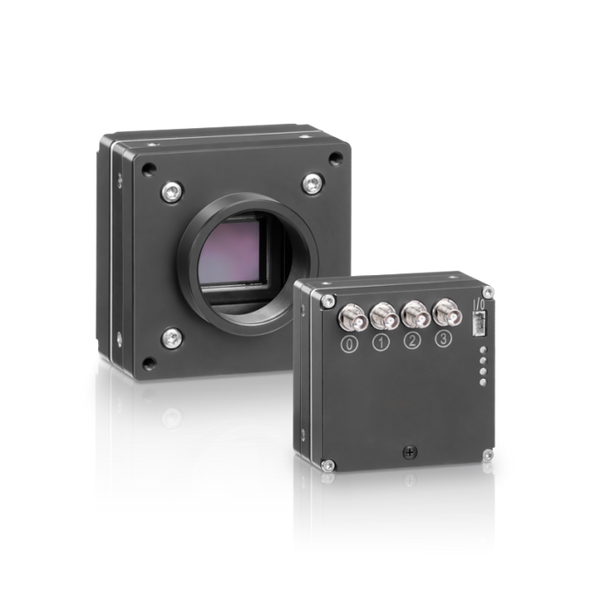

Allied Vision fxo936MCX12-4C-FF Industrial CXP-12 Camera
Downloads:
PDF Instruction 1
The Allied Vision fxo936MCX12-4C-FF is an ultra-high-speed industrial machine vision camera equipped with the high-performance Sony IMX936 CMOS sensor. Delivering a high resolution of 12.40 Megapixels (4128 × 3008) at a blistering frame rate of 339.6 frames per second, this monochrome camera is specifically engineered for demanding automated inspection lines and high-speed motion analysis.
Featuring a Quad CoaXPress 2.0 interface (4 × CXP-12 connections via Micro-BNC), the camera ensures massive data throughput with minimal latency. Designed with a ultra-compact 19 × 50 × 50 mm housing and a Flat Front (FF) lens mount structure, it facilitates seamless integration into space-critical OEM equipment, automated systems, and production lines operating under challenging thermal conditions from -10 °C up to 60 °C.
Application Fields
- High-speed semiconductor and PCB inspection
- Automated optical inspection (AOI) in manufacturing
- Print inspection and web inspection systems
- Intelligent transportation systems and high-speed motion analysis
- Pharmaceutical packaging and quality control
- Scientific research and particle tracking
Specifications
| Model | fxo936MCX12-4C-FF (Product Code: F002435) |
| Sensor Model | Sony IMX936 (Monochrome CMOS, Global Shutter) |
| Resolution | 4128 × 3008 pixels (12.40 MP) |
| Sensor Size | 11.31 × 8.24 mm (1/1.1 inch, Type 1/1.1) |
| Pixel Size | 2.74 µm × 2.74 µm |
| Max Frame Rate | 339.6 fps |
| Digital Interface | CoaXPress 2.0 (4x CXP-12, Micro-BNC connectors) |
| Spectral Range | 400 nm to 1000 nm |
| Bit Depth & Formats | 8-bit, 12-bit (Mono8, Mono12) |
| Exposure Time | 7 µs to 60 s |
| Gain Range | 0.0 dB to 48.0 dB |
| Lens Mount | Flat Front (FF) |
| Power Supply | Power over CoaXPress (PoCxP only, 9 W typical) |
| Dimensions & Weight | 19 × 50 × 50 mm, 120 g |
| IP Rating & Operating Temp | IP30, -10 °C to +60 °C (housing) |
| Advanced Features | ROI, LUT, Shading Correction, DPC, FFC, Sequencer, PWM(4) |
Scope of Delivery
- Allied Vision fxo936MCX12-4C-FF camera body
- Flat Front mechanical mount setup
- Factory inspection certificate and safety documentation
