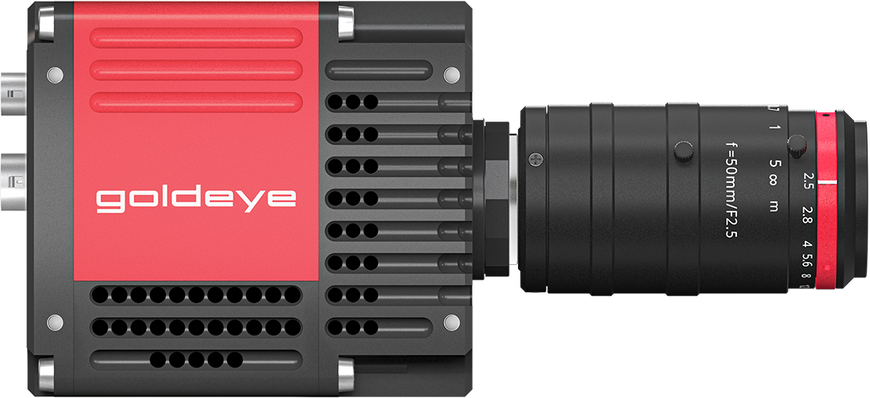

Goldeye CL-008 XSWIR 1.9 TEC2 High-Speed InGaAs SWIR Camera
Downloads:
PDF Instruction 1
The Goldeye CL-008 XSWIR 1.9 TEC2 is an advanced short-wave infrared camera operating in the extended spectral range from 1100 nm to 1900 nm. Powered by a high performance InGaAs sensor with a resolution of 320 x 256 pixels and a global shutter, this unit achieves high frame rates up to 344 fps. Integrated two stage thermoelectric cooling (TEC2) guarantees low noise and exceptional dynamic range even during long exposure applications.
Equipped with a reliable Camera Link Base interface and 256 MB on-board image memory, the device ensures uncompressed realtime streaming without packet loss. Dedicated opto-isolated I/O lines enable precise synchronization with external strobe lights and system triggers, making it an ideal choice for challenging industrial machine vision setup.
Applications
- Semiconductor wafer inspection and microcrack detection
- Spectral sorting and recycling quality control
- Laser beam profiling in extended SWIR waveband
- High speed thermal imaging of high temperature processes
- Scientific research requiring long exposure stability
Specifications
| Model | Goldeye CL-008 XSWIR 1.9 TEC2 |
| Sensor Type | InGaAs Area Scan (Global Shutter) |
| Spectral Range | 1100 nm to 1900 nm (XSWIR) |
| Resolution | 320 x 256 (0.08 MP) |
| Pixel Size | 30.0 µm x 30.0 µm |
| Max Frame Rate | 344 fps |
| Digital Interface | Camera Link Base |
| On-board Memory | 256 MB RAM |
| Sensor Bit Depth | 14-bit |
| Exposure Time | 6 µs to 30 ms |
| Thermoelectric Cooling | TEC2 two stage cooler |
| Power Supply | 10.8 V to 30.0 V DC |
| Power Consumption | 20 W at 12 VDC |
| Operating Temperature | -20 C to 55 C |
| Dimensions | 90 x 80 x 80 mm |
| Weight | 730 g |
Package contents
- Goldeye CL-008 XSWIR 1.9 TEC2 camera body
- Factory calibration certificate
- Quick setup and integration guide
