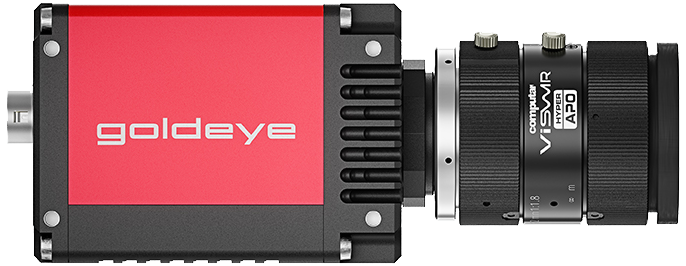

Goldeye CL-030 VSWIR TEC1 SWIR Camera
Downloads:
PDF Instruction 1
The Goldeye CL-030 VSWIR TEC1 is an advanced short-wave infrared camera equipped with the Sony IMX991 InGaAs sensor. Featuring a broad spectral sensitivity from 400 nm to 1700 nm, it delivers exceptional imaging performance across both visible and SWIR spectrums. With frame rates up to 234 fps at 656 x 520 resolution, this high-speed camera accelerates quality control and inline inspection processes.
Integrated with active thermo-electric cooling (TEC1) and a 256 MB image buffer, the camera ensures stable image acquisition with minimal dark current noise even during long exposure times. The robust Camera Link Base interface guarantees reliable high-bandwidth real-time data transfer for demanding machine vision applications.
Applications
- Semiconductor and solar cell inspection
- Optical sorting and recycling line control
- Laser beam profiling and monitoring
- Medical and spectral imaging analysis
- Water and moisture detection in food processing
Specifications
| Model | Goldeye CL-030 VSWIR TEC1 |
| Sensor Model | Sony IMX991 InGaAs TEC |
| Spectral Range | 400 nm to 1700 nm (VSWIR) |
| Resolution | 656 x 520 pixels (0.30 MP) |
| Pixel Size | 5.0 µm x 5.0 µm |
| Sensor Format | Type 1/4 (3.28 x 2.6 mm) |
| Shutter Type | Global Shutter |
| Max Frame Rate | 234 fps |
| Exposure Time | 3 µs to 200 ms |
| Gain Range | 0 dB to 18 dB |
| Bit Depth | 12-bit |
| Digital Interface | Camera Link Base |
| On-board Memory | 256 MB RAM buffer |
| Digital I/O | 1 opto-isolated in, 2 opto-isolated out, 1 non-isolated in, 1 non-isolated out |
| Power Supply | 10.8 VDC to 30.0 VDC |
| Power Consumption | Max 11.8 W at 12 VDC |
| Operating Temperature | -20 °C to 55 °C housing |
| Dimensions (L x W x H) | 78 mm x 55 mm x 55 mm |
| Weight | 330 g |
Package Contents
- Goldeye CL-030 VSWIR TEC1 camera unit
- Technical documentation and quick start guide
