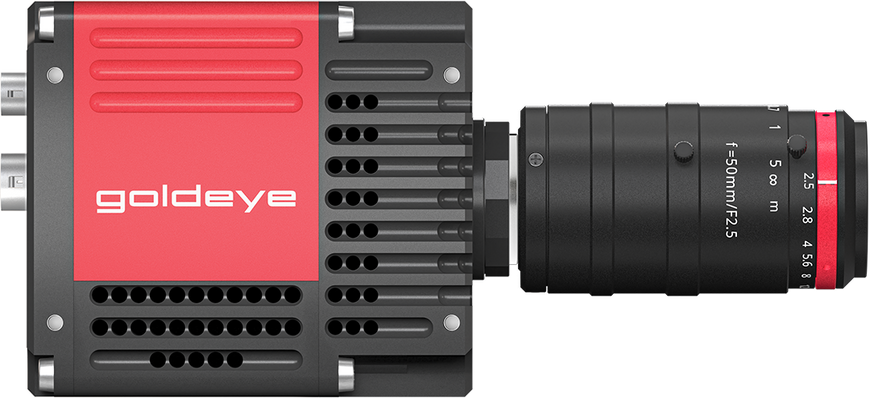

Goldeye CL-034 XSWIR 2.2 TEC2 High-Speed Extended SWIR Camera
Downloads:
PDF Instruction 1
The Goldeye CL-034 XSWIR 2.2 TEC2 represents the pinnacle of high-speed extended short-wave infrared (XSWIR) imaging technology. Featuring an advanced progressive scan CMOS-InGaAs sensor with a broad spectral response from 1200 nm to 2200 nm, this camera captures invisible physical phenomena with outstanding precision. Delivering full VGA resolution (636 × 508 pixels) at an unprecedented frame rate of up to 303 fps, it is engineered for demanding real-time industrial and scientific inspection tasks.
To guarantee superior image quality and ultra-low noise levels during long exposure periods, the unit incorporates an integrated two-stage thermoelectric sensor cooler (TEC2). Coupled with a high-throughput Camera Link Base digital interface, 256 MB onboard image buffer, and high dynamic range 14-bit ADC, the camera ensures loss-free real-time data acquisition under extreme ambient temperatures from -20 °C to +55 °C.
Applications
- Advanced semiconductor and solar cell wafer inspection
- High-temperature industrial process monitoring and pyrometry
- Chemical sorting, plastics recycled material identification, and spectral analysis
- Laser beam profiling in extended infrared wavelengths (up to 2200 nm)
- Environmental imaging, geology, and airborne remote sensing
- Hyperspectral and multispectral vision systems
Specifications
| Model | Goldeye CL-034 XSWIR 2.2 TEC2 |
| Sensor Type | Progressive Scan CMOS-InGaAs (Area Scan) |
| Spectral Range | 1200 nm to 2200 nm (Extended SWIR) |
| Resolution | 636 × 508 pixels (0.32 MP, VGA) |
| Pixel Size | 15.00 µm × 15.00 µm |
| Sensor Size | 9.54 mm × 7.62 mm (Type 1, 12.2 mm diagonal) |
| Shutter Type | Global Shutter (GS) |
| Max Frame Rate | 303 fps at full resolution |
| Exposure Time Range | 1 µs to 10.00 ms |
| Gain Control | 0.0 dB to 33.0 dB |
| ADC Depth | 14-bit |
| Digital Interface | Camera Link Base |
| On-board Memory | 256 MB RAM image buffer |
| I/O Ports | 1 Opto-isolated in, 2 Opto-isolated out, 1 LVTTL in, 1 LVTTL out, RS232 |
| Cooling System | Thermoelectric Cooler (TEC2) |
| Supply Voltage | 10.8 VDC to 30.0 VDC |
| Power Consumption | 21 W at 12 VDC |
| Operating Temperature | -20 °C to +55 °C (housing) |
| Dimensions (L × W × H) | 90 mm × 80 mm × 80 mm |
| Weight | 740 g |
Package Contents
- Goldeye CL-034 XSWIR 2.2 TEC2 Industrial Camera
- Standard C-mount adapter cap
- Terminal block connector for I/O and power supply
- Factory calibration report and quick setup documentation
