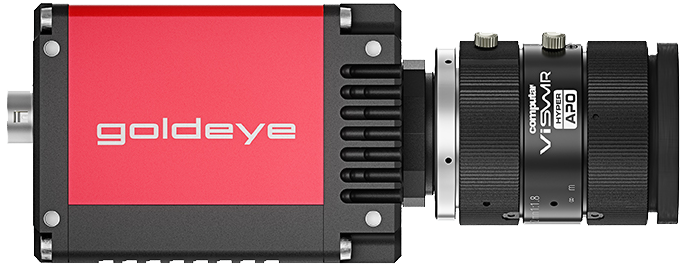

Goldeye CL-130 VSWIR TEC1 High-Speed InGaAs VSWIR Camera
Downloads:
PDF Instruction 1
The Goldeye CL-130 VSWIR TEC1 is an advanced short-wave and visible infrared camera featuring the Sony IMX990 InGaAs sensor with integrated TEC1 single-stage thermo-electric cooling. Delivering an impressive SXGA resolution of 1280 x 1024 pixels at up to 94 frames per second, this camera expands vision applications across a broad spectral range from 400 nm to 1700 nm. Its compact housing combined with high signal-to-noise ratio ensures exceptional image quality even under challenging thermal and lighting conditions.
Equipped with a high-bandwidth Camera Link Base interface and 256 MB onboard image memory, the device guarantees reliable real-time data transmission required for demanding machine vision processes. Features like global shutter technology, advanced background correction, and customizable non-isolated line configurations make it an essential tool for high-precision industrial inspection, semiconductor sorting, and scientific research.
Applications
- Semiconductor and solar cell wafer inspection
- Optical sorting of recycled materials and food products
- Spectral imaging and hyperspectral vision analysis
- Laser beam profiling and airborne remote sensing
- Medical diagnostics and biological tissue imaging
Specifications
| Sensor Model | Sony IMX990 InGaAs TEC1 |
| Spectral Range | 400 nm to 1700 nm (VSWIR) |
| Resolution | 1280 x 1024 pixels (1.30 MP) |
| Pixel Size | 5.0 um x 5.0 um |
| Frame Rate | 94 fps (at full resolution) |
| Shutter Type | Global Shutter |
| Digital Interface | Camera Link Base |
| On-board Memory | 256 MByte RAM |
| Power Supply | 10.8 V to 30.0 V DC (Max 11.8 W) |
| Dimensions & Weight | 78 x 55 x 55 mm, 330 g |
Package Contents
- Goldeye CL-130 VSWIR TEC1 Camera Body
- Standard lens mount protection cap
- Factory calibration certificate
- Quick installation guide
