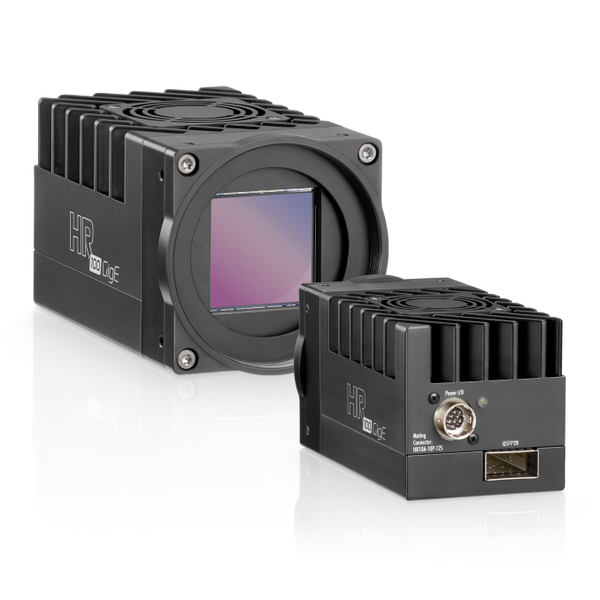

Allied Vision HR 100GigE hr927C100GE-FF Color Camera
Downloads:
PDF Instruction 1
The Allied Vision hr927C100GE-FF is an ultra-high resolution industrial camera engineered for ultra-fast, demanding machine vision applications. Powered by the state-of-the-art Sony IMX927 CMOS sensor, it captures exceptionally detailed 104.90 megapixel color images at a maximum frame rate of 112 fps.
Equipped with a high-bandwidth 100GigE QSFP28 digital interface and supporting the GigE Vision 3.0 standard with RDMA protocol, this camera delivers unprecedented data transmission performance. Its massive 4032 MB image buffer and 32768 MB non-volatile flash memory ensure seamless high-speed frame processing without data loss.
Scope of application
- Automated optical inspection (AOI) in flat panel display manufacturing
- High-throughput semiconductor wafer inspection
- Aerial mapping and high-resolution spatial surveying
- Printed circuit board (PCB) quality assurance
- Large-scale industrial defect detection
Specifications
| Parameter | Value |
| Model | hr927C100GE-FF (F004311) |
| Sensor Type | Sony IMX927 CMOS (Color, Global Shutter) |
| Resolution | 10240 x 10240 (104.90 MP) |
| Pixel Size | 2.74 µm x 2.74 µm |
| Sensor Size | 28.06 x 28.06 mm (Type 2.5) |
| Max Frame Rate | 112 fps |
| Digital Interface | 100GigE (QSFP28), GigE Vision 3.0 |
| Spectral Range | 400 nm to 1000 nm (IR-Cut 680 filter) |
| Bit Depth / Formats | 8-bit, 10-bit, 12-bit (Bayer8, Bayer10, Bayer12) |
| Exposure Range | 8 µs to 60 s |
| Gain Range | 0.0 dB to 48.0 dB |
| On-board Memory | 4032 MB RAM / 32768 MB Flash |
| I/O Connector | 12-pin Hirose HR10A-10P-12S |
| Supply Voltage / Power | 24 to 25 VDC, 30 W typical |
| Lens Mount | Flat Front |
| Dimensions / Weight | 92 x 58 x 58 mm, 550 g |
| IP Rating | IP30 |
Package contents
- Allied Vision hr927C100GE-FF camera module
- Protection cap
- Safety instructions and quick start documentation
